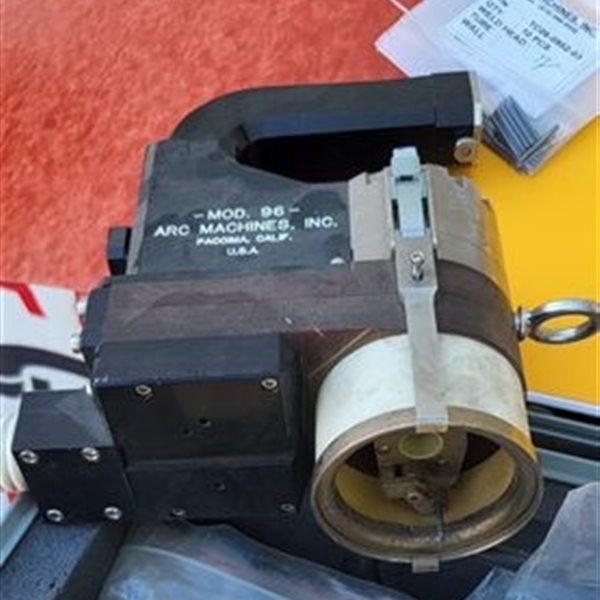

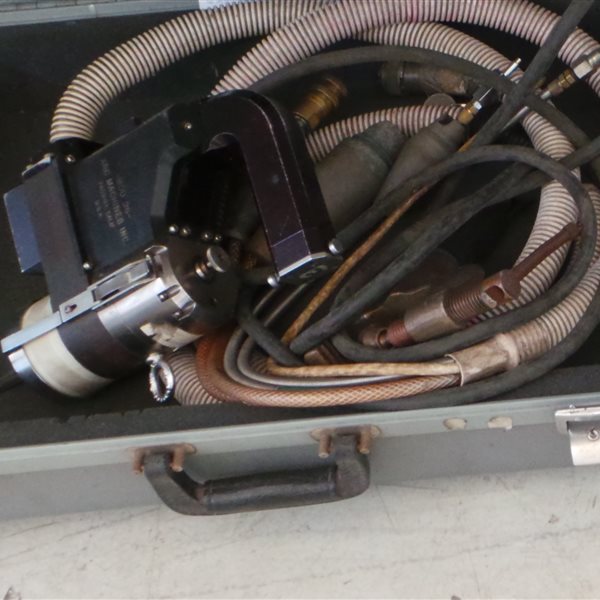

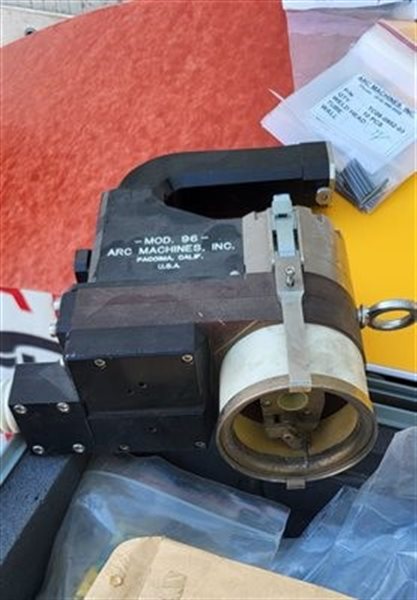

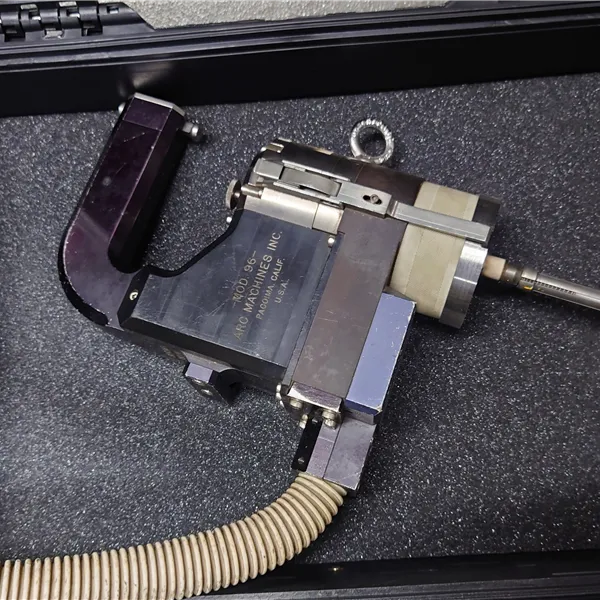

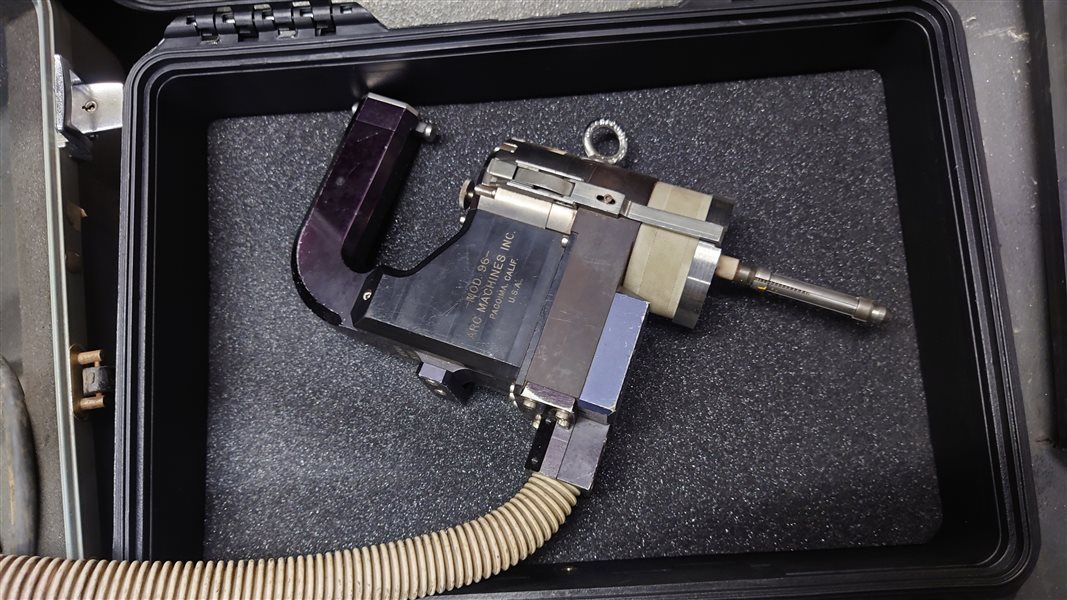

AMI Model 96 Tube to Sheet Orbital Weld Head

This equipment is available for delivery to United States

Get a Quote

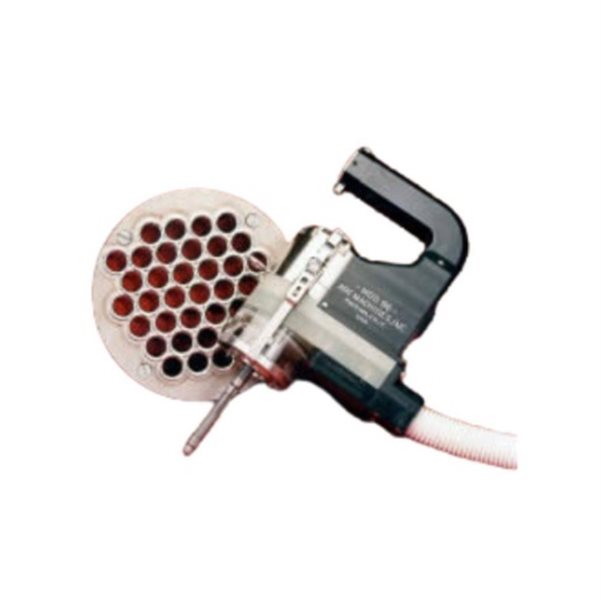

The Arc Machines, inc Model 96 is an automated weld head designed for high-speed, high-production autogenous welding of tubes to tubesheet.
Welds made with this head, utilising the GTAW (TIG) welding process, can pass the most rigid specifications.
Tube Size Range Weld Current 0.375” ID (9,525 mm) (min.) Max. 150 ADC 1.87” ID (47,498 mm), 2.0” OD (50,8 mm) (max.)

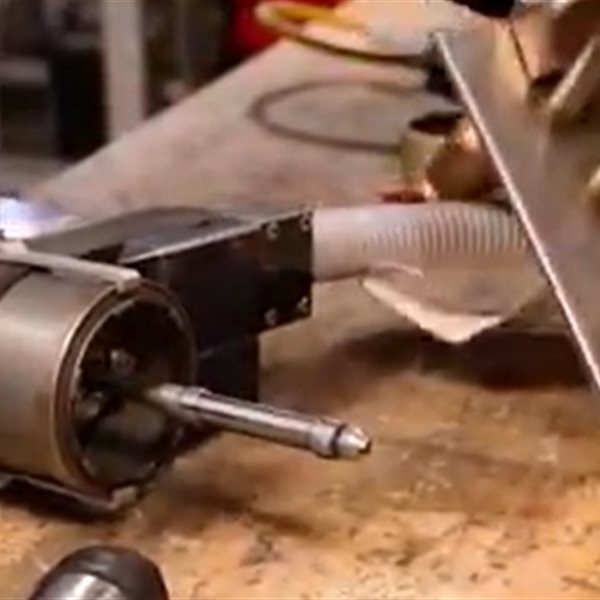

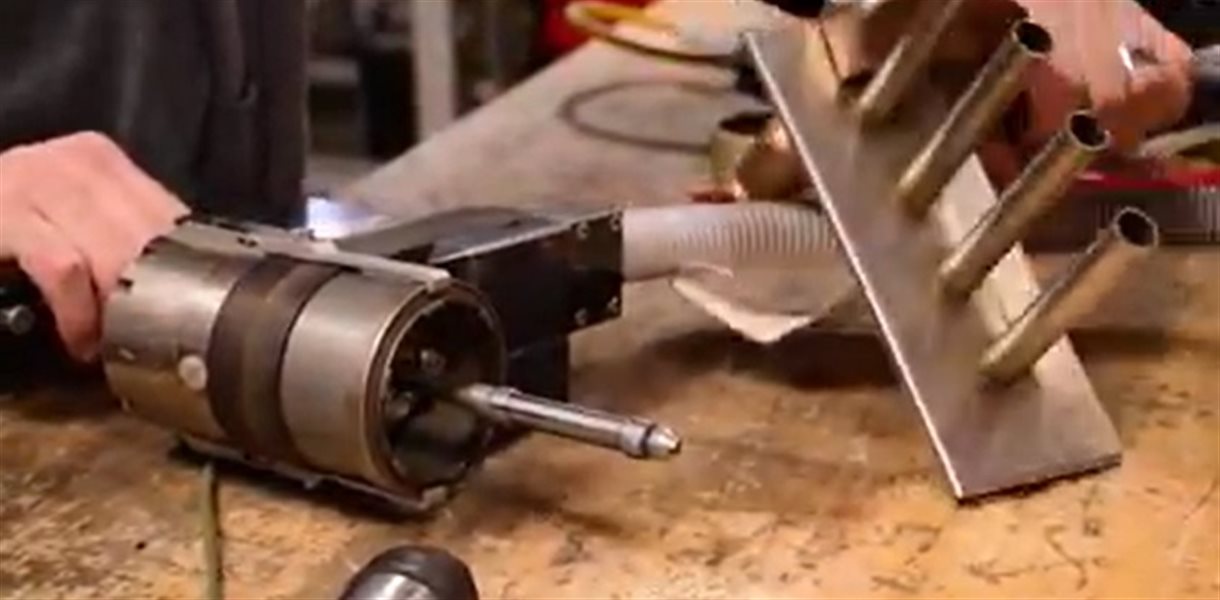

The weld head is held in place on the tube to be welded by an expanding mandrel. This mandrel is actuated by a single button, conveniently located in the handle.
Actuation of the mandrel holds the weld head firmly to the tubesheet and positions the torch concentric to the tube to be welded.
The Model 96 features a completely enclosed purge chamber.
The gas chamber eliminates the use of gas cups and provides superior shielding for materials that oxidize easily, such as titanium.
Orbital welding power sources - all models from the AMI range in stock for sale

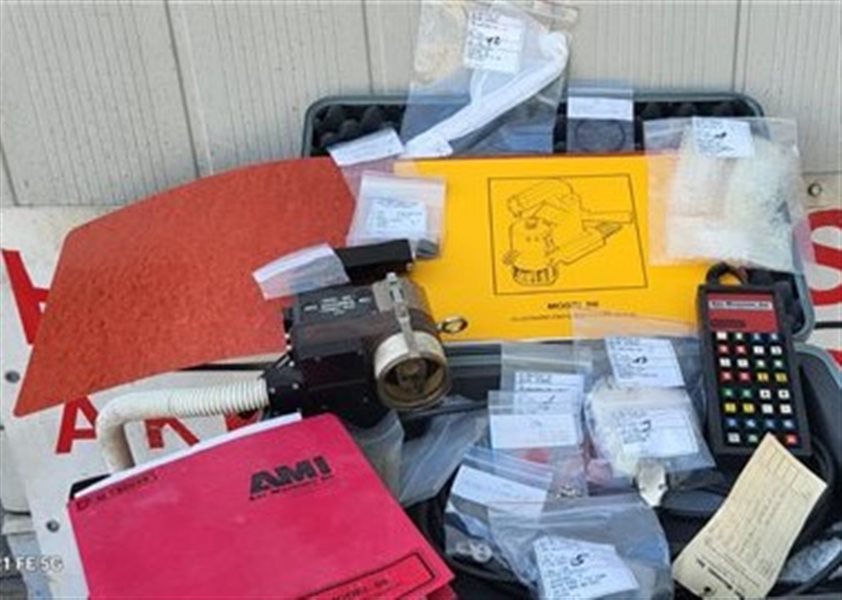

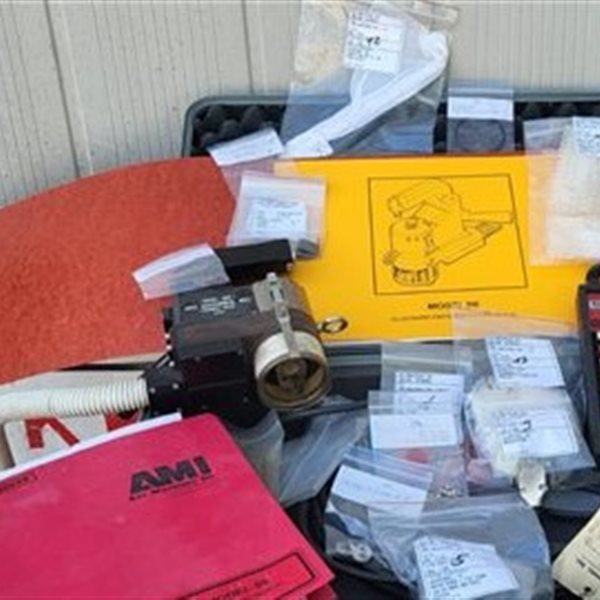

Package Includes:

4 month warranty

PDF 1

Lead Times

All used machines are serviced/refurbished to order, and lead times are dependant on current workload and machine type. The below can be used as a guide only, and is subject to change. If you have a deadline you need the equipment by, please contact us prior to ordering. We will always do what we can to try and work with your timescales where possible.

“As Is” machines: 2-3 working days.
“Serviced” machines: 7 working days.
“Refurbished” machines: 2-3 weeks.
“New” machines: subject to stock and supplier lead times where applicable.
