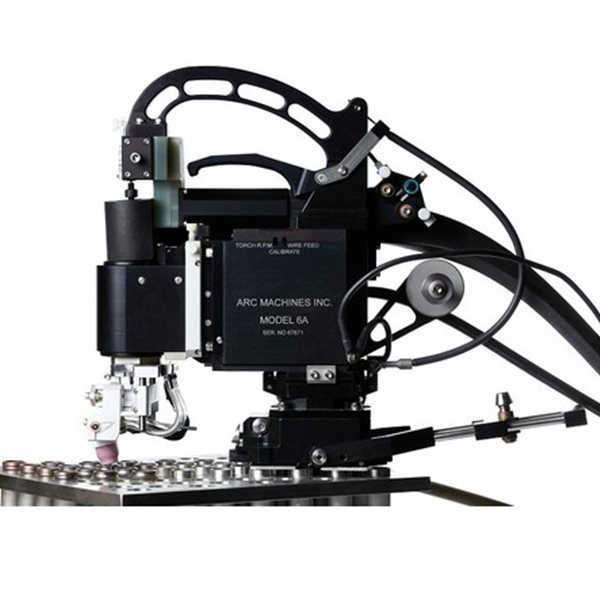

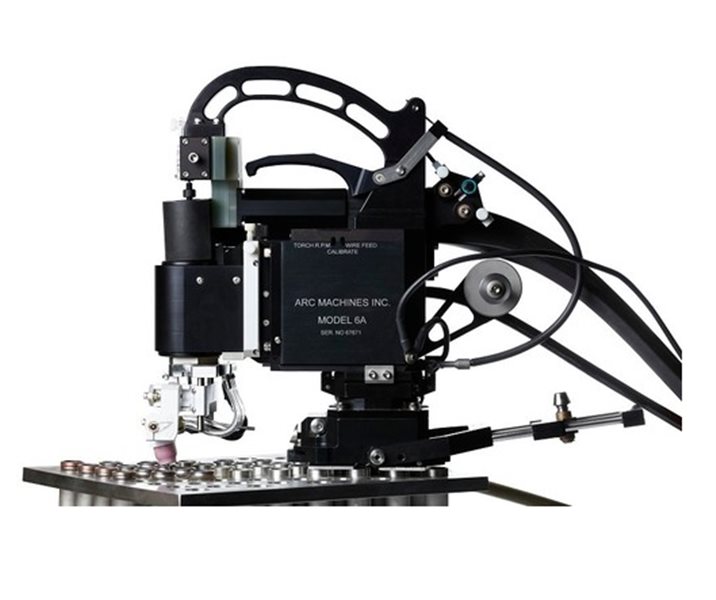

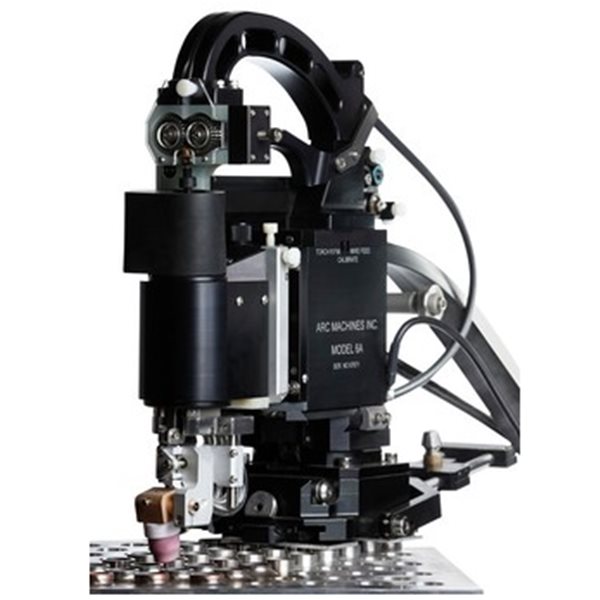

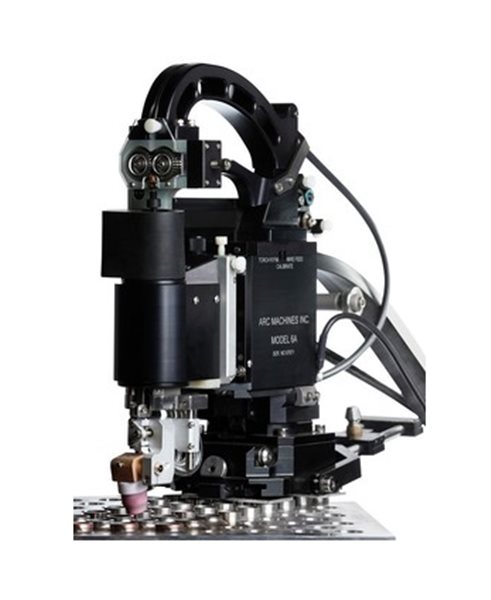

AMI Model 6 Tube-to-tubesheet weld head
This equipment is available for delivery to United States
- The Model 6 is a rugged, field-proven weld head for high-production welding of tube to tubesheet using the orbital GTAW process.
- It has exceptionally fast mount and dismount times for ease of operation and productivity.
- The torch is positioned on the tube to be welded by a pneumatically operated locating fixture. With the touch of a button, the locating fixture precisely locates itself over the tube to be welded.
- Torch options:
- "C" torch - for fillet welding of projected tubes
- "D" torch - for fillet welding of projected tubes with minimum spacing between tubes.
- "E" torch - for welding flush or recessed tubes.
- The "C" and "D" torches (for fillet welds) are spring loaded torches with a chill follower. The chill follower is located on the inside of the tube to be welded and contacts the tube wall exactly opposite the electrode, minimizing the
- possibility of burn-through on thin-wall tubes. The mechanics of the spring-loaded torch allows it to perfectly track the shape of the tube regardless of minor ovality. Gas chamber for welding titanium available.
- Weld current: 200A
- Rotation speed: 0.1 - 10.0 PRM
- Wire feed speed: 5-100 IPM (13-254 cm/min)
- Tungsten size: 1/16" or 3/32" (1.6mm or 2.4mm ø)
- Compatible power supplies AMI Model 317 & Model 415 WDR
Package Includes:
- 12 month warranty
- May require additional tooling/accessories – please check when making your enquiry
Lead Times
All used machines are serviced/refurbished to order, and lead times are dependant on current workload and machine type. The below can be used as a guide only, and is subject to change. If you have a deadline you need the equipment by, please contact us prior to ordering. We will always do what we can to try and work with your timescales where possible.
- “As Is” machines: 2-3 working days.
- “Serviced” machines: 7 working days.
- “Refurbished” machines: 2-3 weeks.
- “New” machines: subject to stock and supplier lead times where applicable.
