ETR Vertical TIG endless torch rotation with Fronius welding equipment

This equipment is available for delivery to United States

Enquire Now

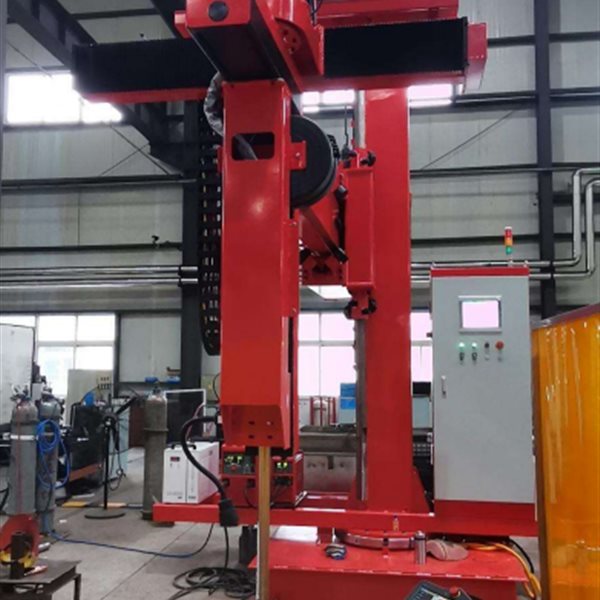

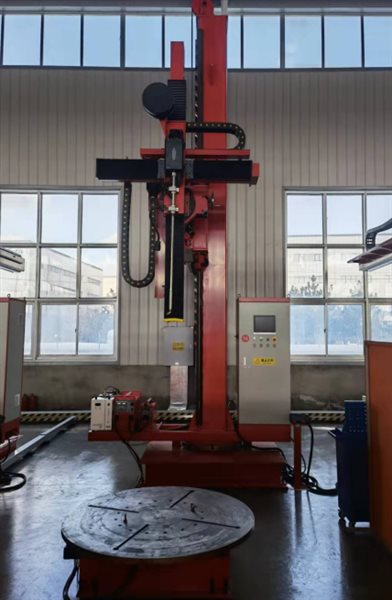

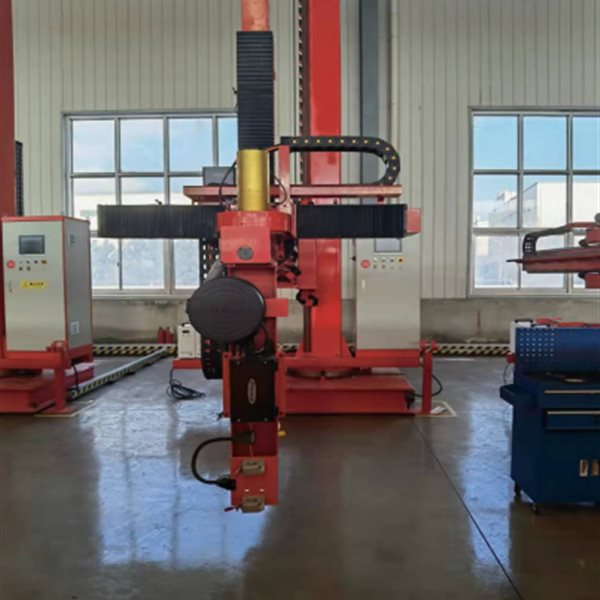

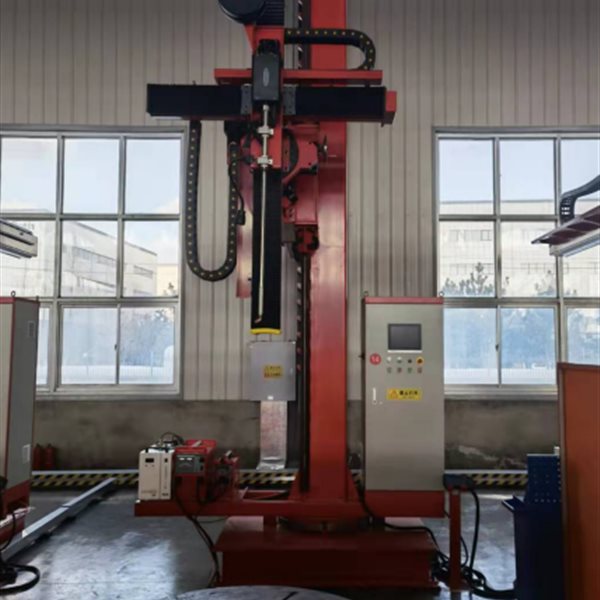

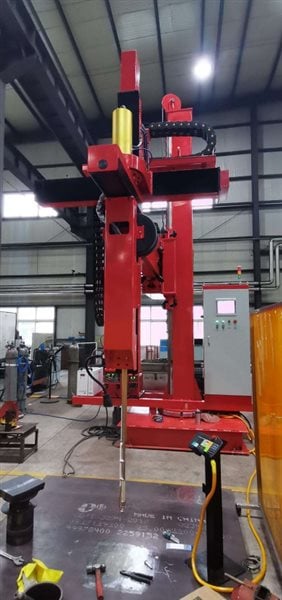

ETR Hot Wire Cladding. The equipment is mainly used for surfacing welding of the inner wall of oil and gas industry components such as valve bodies flanges, and pipe fittings. The workpiece is installed horizontally on the workbench
The workpiece program type is pre-written on the system panel based on PC system control, and various workpiece feature parameters are set and welding parameters are written. After arcing, the workpiece welding is completed automatically.
The welding gun is rotated (ETR), and the characteristic welding surfaces that can be completed include circular, diameter gradient circle, plane circle, valve body intersection line, runway type, V -groove, reducer pipe,
tee pipe and other automatic track operation welding. It automatically completes a single characteristic welding surface.
If the characteristic welding surface changes, it is necessary to manually adjust the workpiece, adjust the initial posture of the welding gun, and recompile and select the program
ETR can be used to process workpieces with a maximum diameter of 500 mm (combination guns can be used to weld large workpieces)

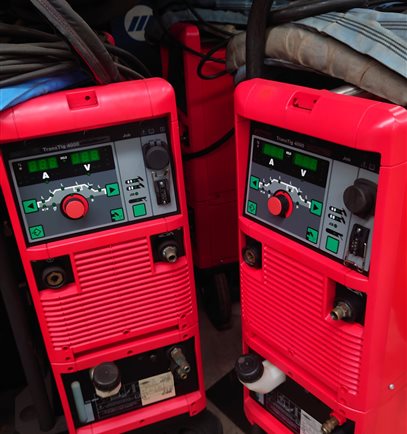

Fronius Welding power source set TT5000 complete
Fronius Welding power source set TT2200 complete
Hotwire feeder
Software FS Mode CC/CV
Turntable OD2000mm/10 Tons
Control unit by BECKHOFF
Selection of cladding torches TTHW3000M ￠35 /600mm,TTHW3000M ￠45 /1500mm and TTHW4000M ￠75 /1800mm
More detail can be found on the PDF

PDF 1

PDF 2

PDF 3
