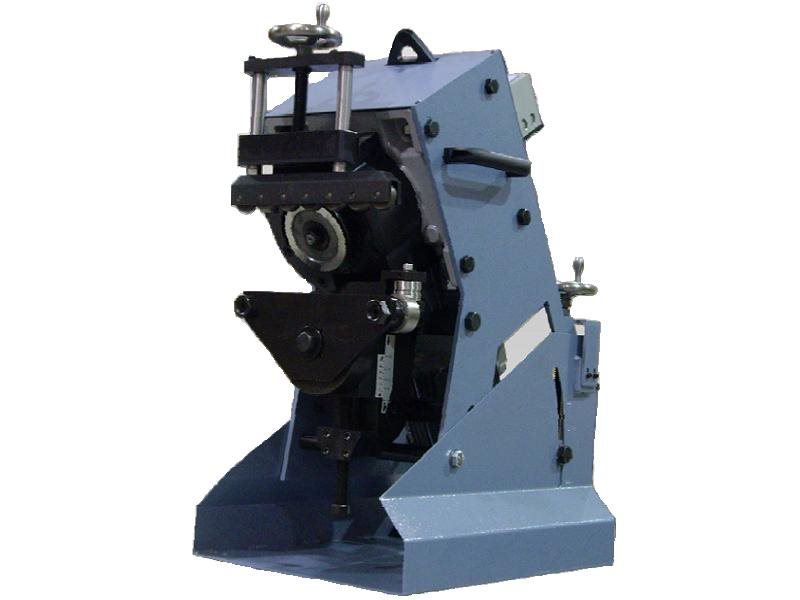

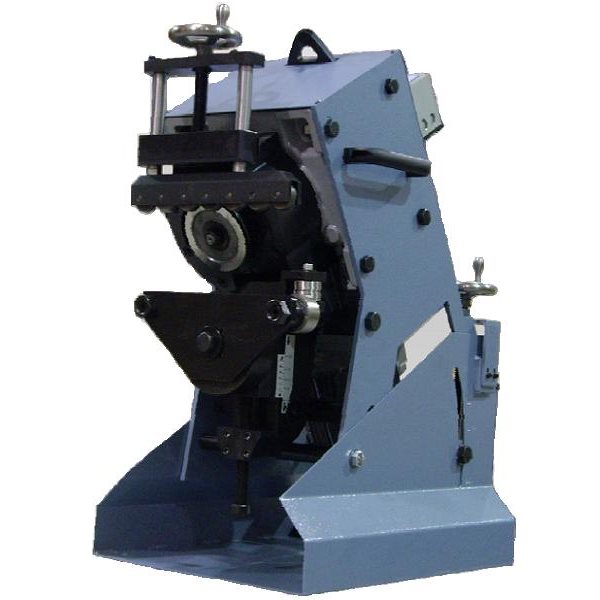

Gullco Plate Bevelling Machine KBM-28 - New
This equipment is available for delivery to United States
- Portable heavy duty plate edge bevelling machine, self propelled weld prep Beveler
- Produces clean machined bevels with no thermal distortion on mild steel, stainless steel and aluminum plate from 5/16” (8.0 mm) to 2” (50.0 mm) thick
- The KBM-28 bevels the topside of plate reducing time and cost, enhanced when used with the KBM-28U underside beveller in applications where both sides of the material require bevelling
- The KBM-28U is perfect for beveling the underside of the plate without need for flipping the work piece over
- Operates at 6.5 feet (2 meters) per minute
- KBM-28 units can be supplied with choice of undercarriages -
- Spring loaded caster wheel assembly for self-propelled beveling along any length of plate maintaining a uniform bevel and consistent root face
- Hydraulic version of above best suited for applications where frequent height adjustment is required
- KBM-28 Bevelling machines come complete with the following equipment as standard -
- 1x GBM-28-X1 Deep Tooth Cutter (medium cut) 1x Set Bevel Angle Pins for 22 1/2°, 30°, 37 1/2°, 45° or 55 ° and 1x Tool Kit
- Pins for other bevel angles available upon request
- Accessories available for tailoring systems to meet your bevelling requirements, including tooth cutters
- See PDF Brochure for more details and specifications
Package Includes:
- 12 month warranty
Lead Times
All used machines are serviced/refurbished to order, and lead times are dependant on current workload and machine type. The below can be used as a guide only, and is subject to change. If you have a deadline you need the equipment by, please contact us prior to ordering. We will always do what we can to try and work with your timescales where possible.
- “As Is” machines: 2-3 working days.
- “Serviced” machines: 7 working days.
- “Refurbished” machines: 2-3 weeks.
- “New” machines: subject to stock and supplier lead times where applicable.
Shipping
All shipping costs include packing.
UK*
- Parcel delivery: from £15 next day courier
- Pallet delivery: from £75
- Large item delivery: TBC by quotation
Northern Ireland
- Pallet delivery: £120
- Parcel and large item delivery: TBC on quotation
Ireland
- Pallet delivery: £220
- Parcel and large item delivery: TBC by quotation
Europe and Overseas
All welding equipment and machinery is sold and supplied Ex-Works, unless otherwise stated. We can however provide full freight forwarding facilities via road, sea or air freight. We work with our reliable shipping partners for one off items, up to the loading of 40ft containers. For a quotation, please contact us with your destination address/port, along with any other specific documentation requirements.
* Rates for mainland UK, subject to change. If in doubt, please send us your delivery postcode for confirmation
