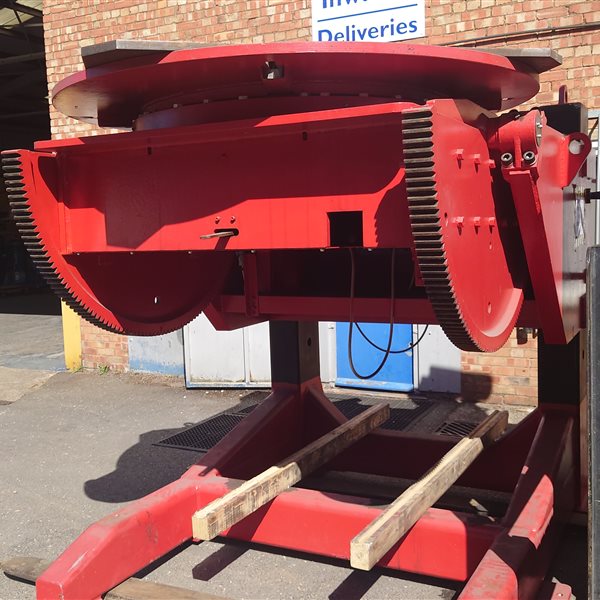

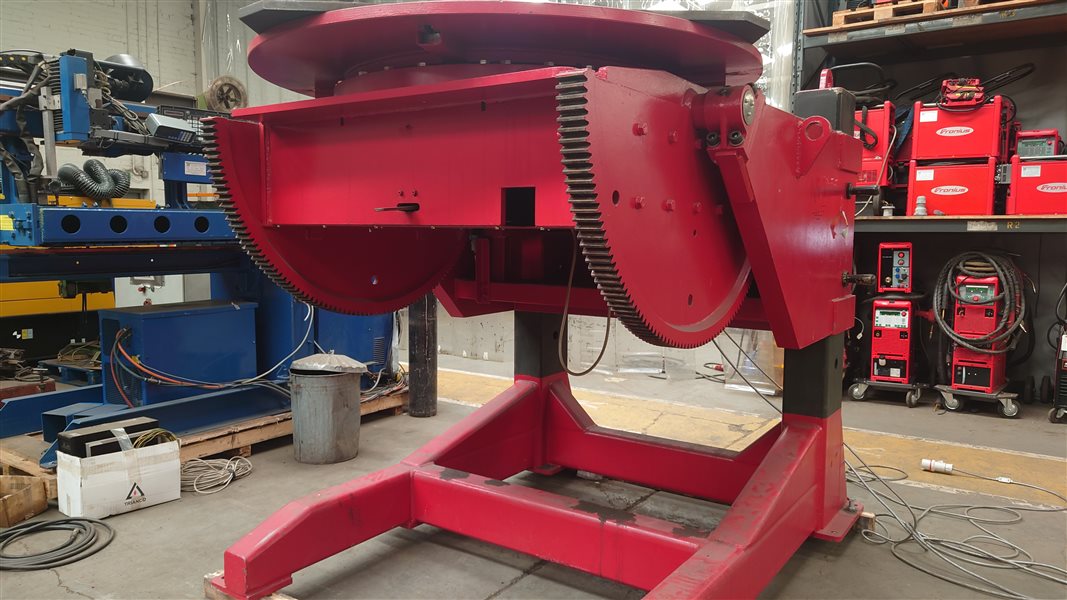

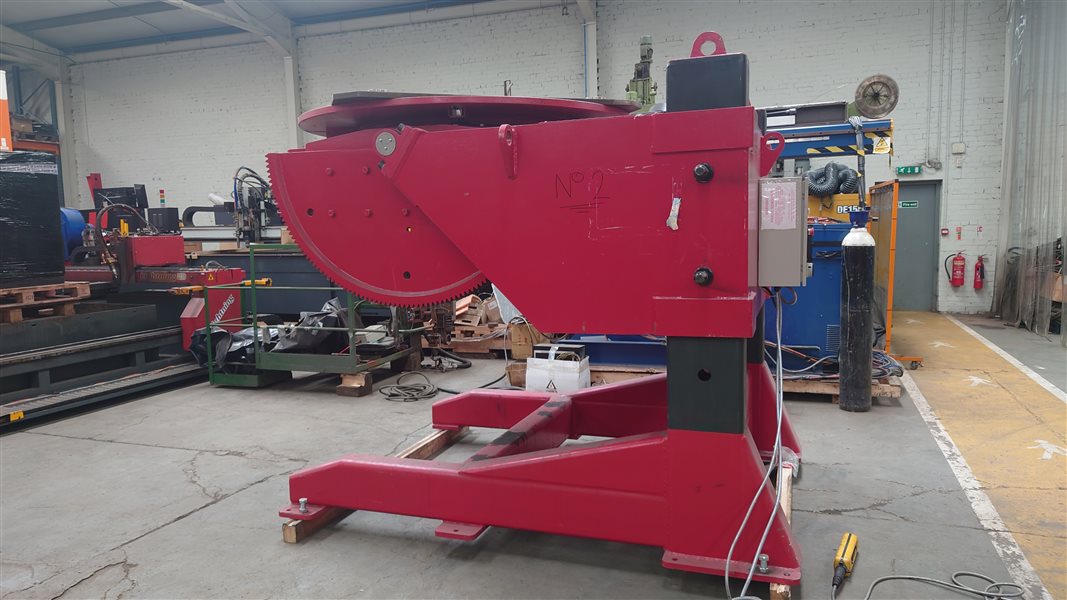

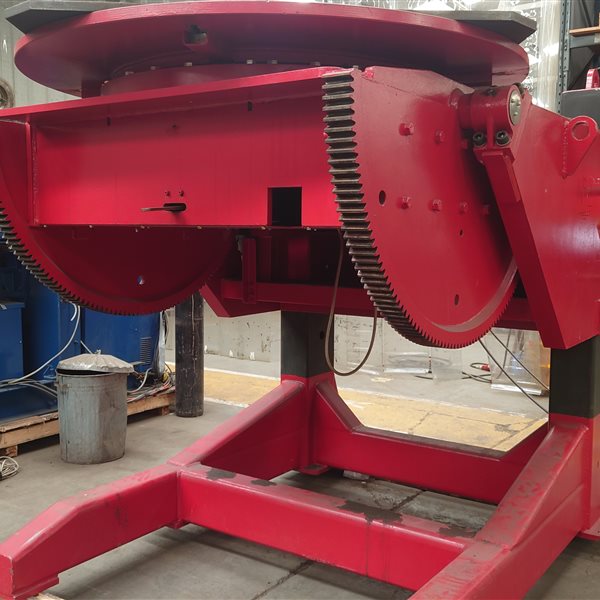

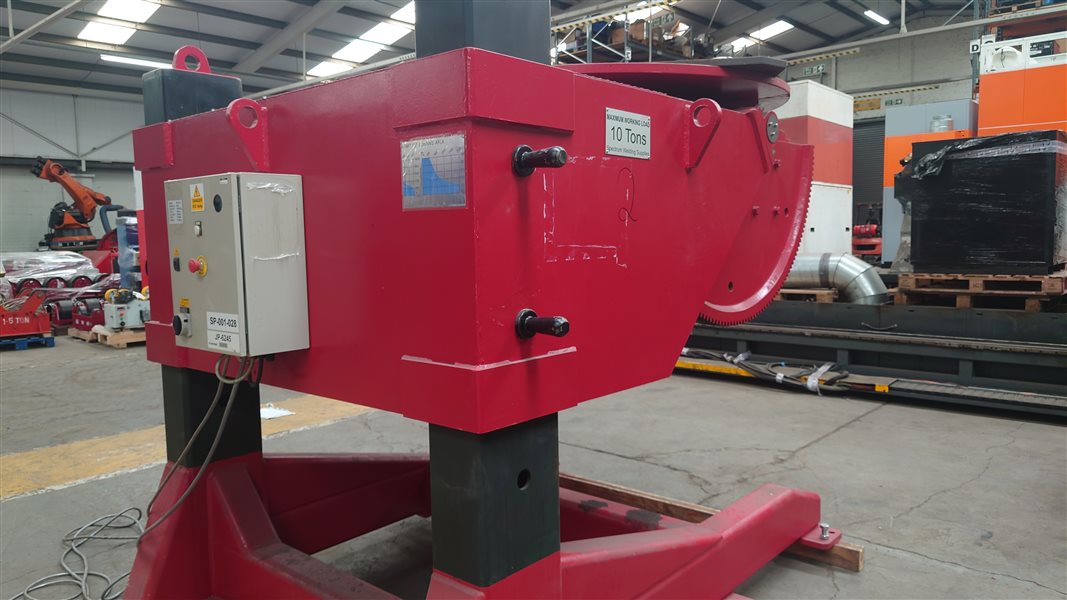

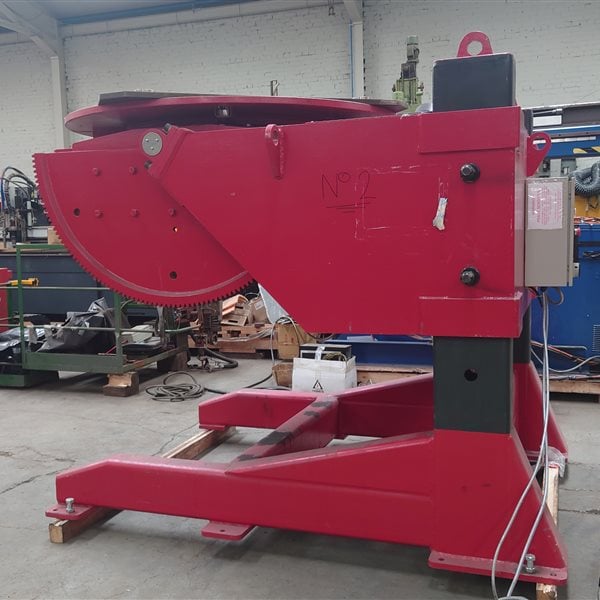

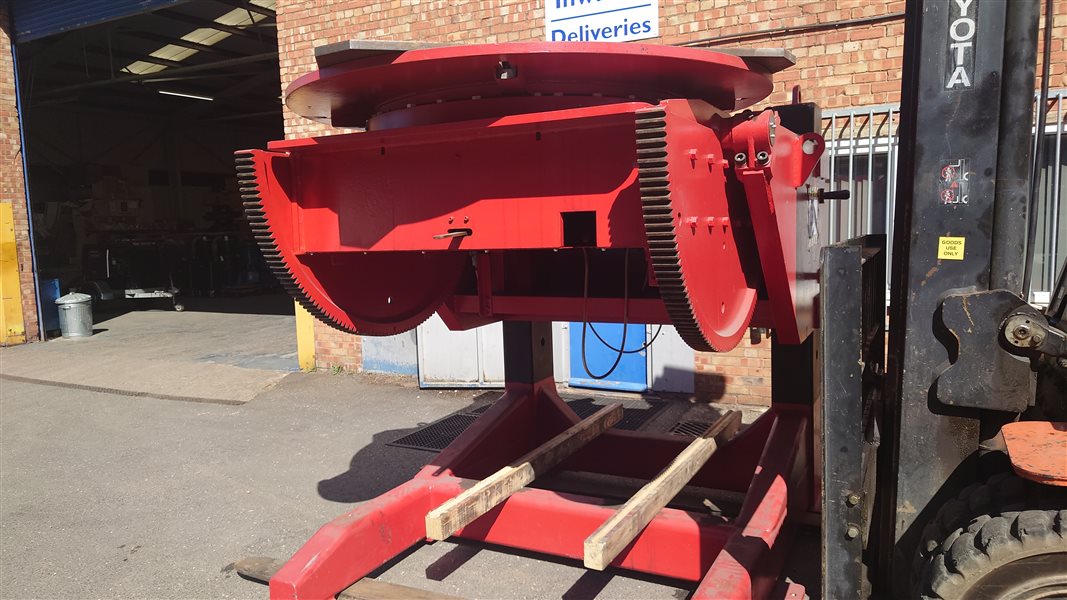

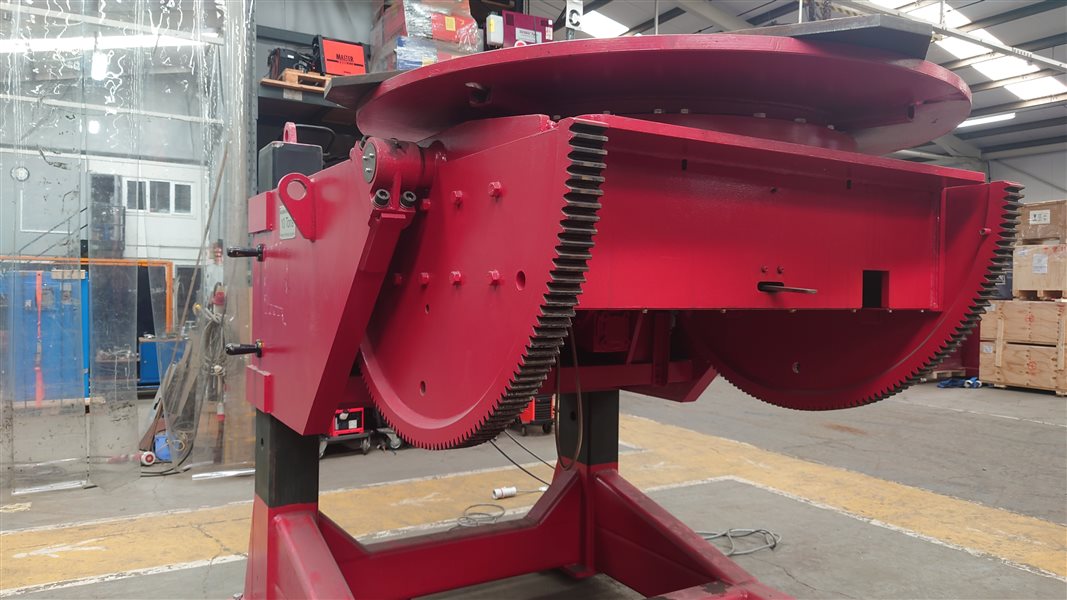

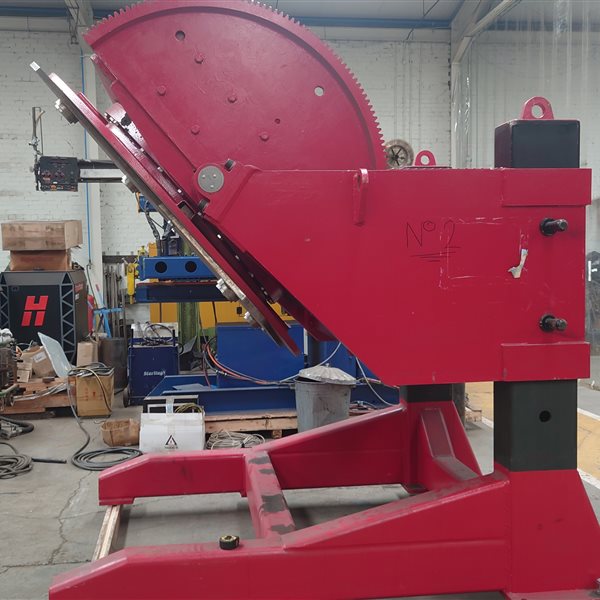

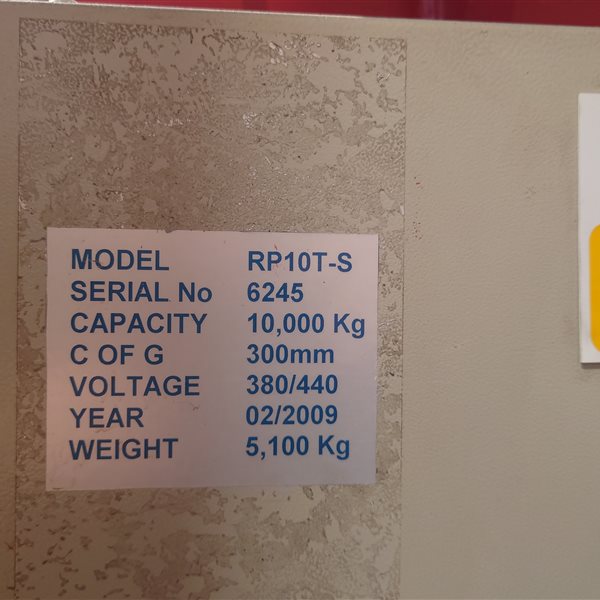

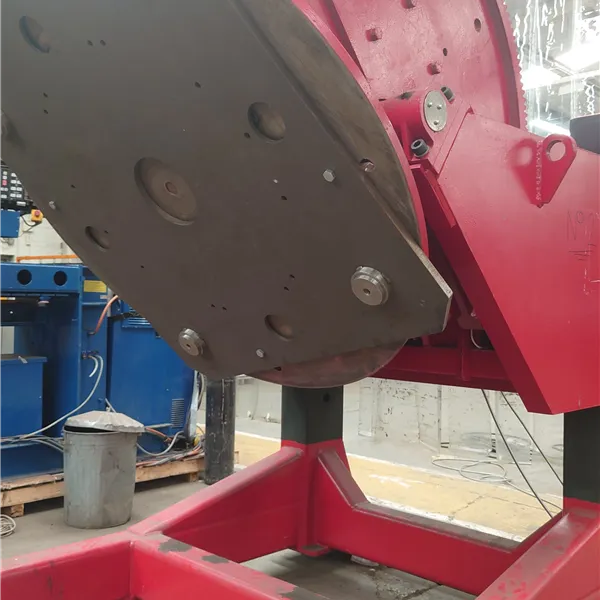

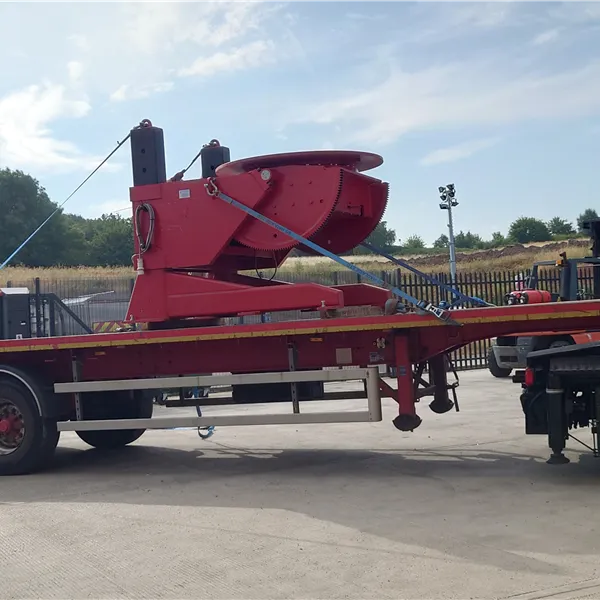

Red-D-Arc Adjustable Height 10,000kg Welding Positioner
- This welding Positioner Model RP10TS- FA-D1800 has a 10 metric tonne capacity designed to give a maximum positioning benefit by using tilt and rotation of the table for easy positioning of the workpiece.

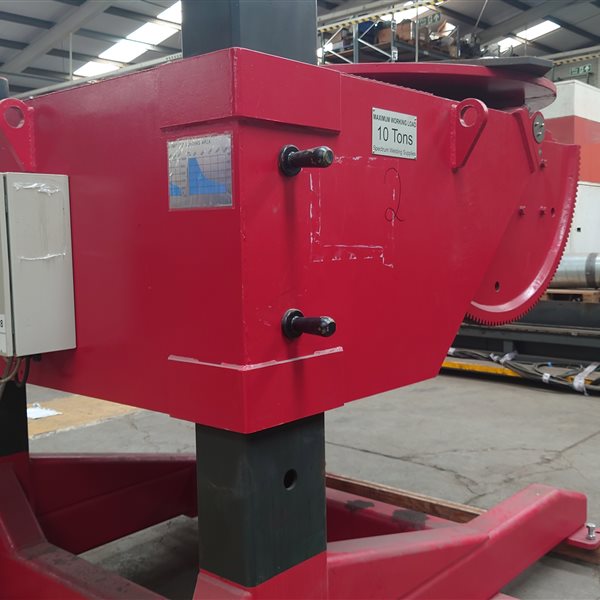

- Two robust columns permits the operator to adjust the vertical height manually in increments of 150 mm per slot/pitch to give a minimum table height of 1350mm up to maximum table height of 1950mm.

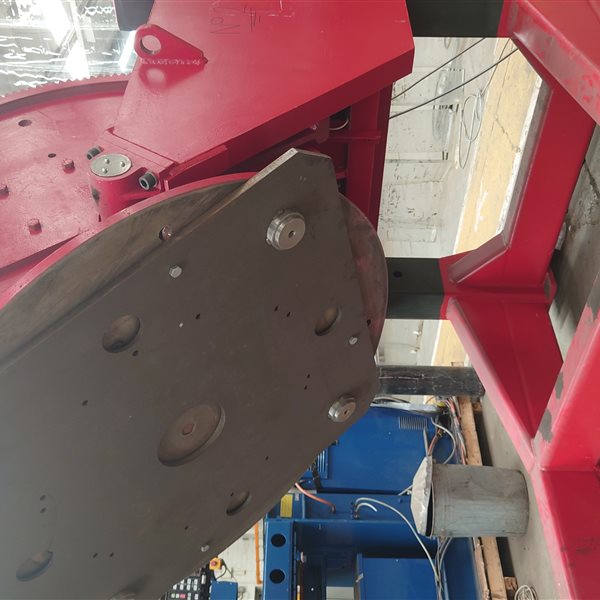

- The table is machined with four radial slots for anchor bolts and centric marking on the table
- It is powered driven by AC motor controlled by the latest inverter control box fitted with remote pendant control to provide stop/start, forward/reverse, tilt and variable speed control.

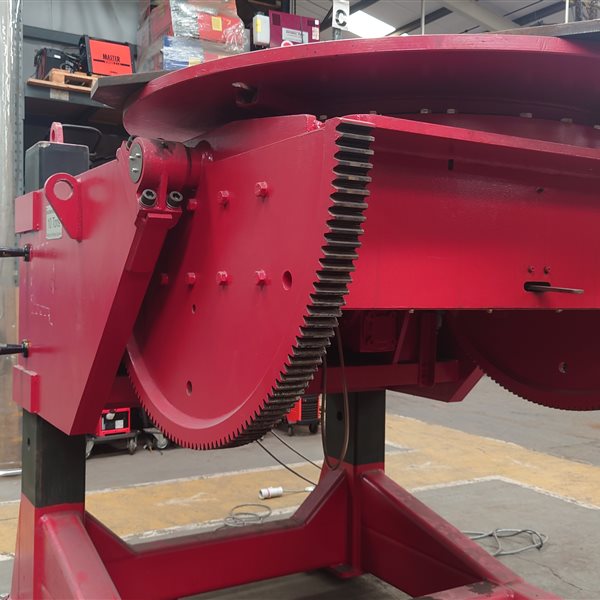

- Tilt movement is electrically power driven by 4.0Kw AC motor with Dynamic Braking through the reduction gearbox.
- Earth connections are made through a rotary earth clamp to ensure good earthing to the welding power source.
- Table Size: Diameter of 1800mm

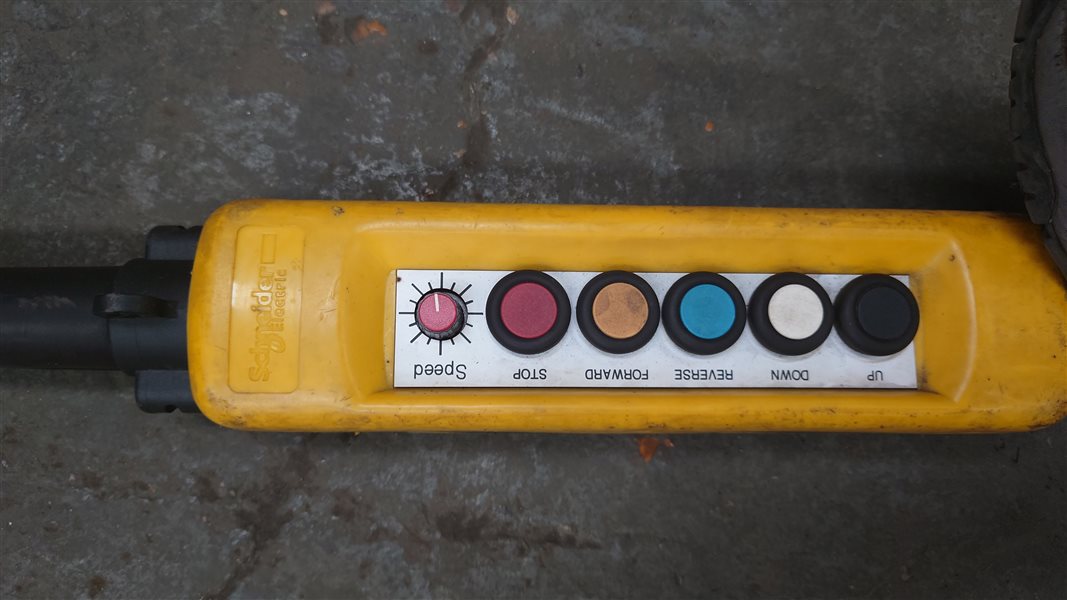

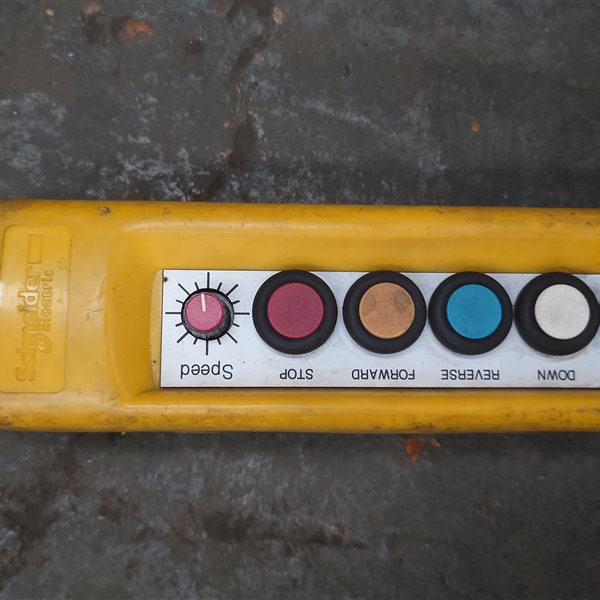

- Pendant Control: 24VAC circuit, push button with 6m cable
- Input voltage: 415 V/3 phase/16amps/50Hz (Specify voltage requirement when ordering)
- Turning Capacity: 10-metric ton at 300mm (refer load chart)
- Rotation Speed: 0.08 to 0.8rpm
- Tilting Capacity: 10-metric ton at 300mm (refer load chart)

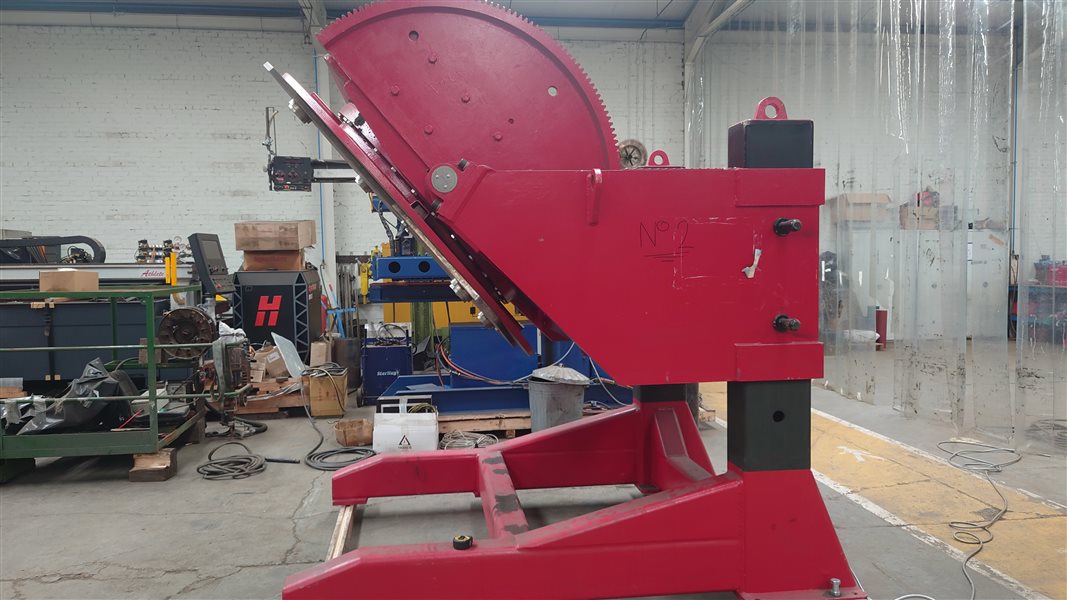

- Tilt Range: 0 to 135 Degrees
- Tilt Speed: 135 Degree at 110second,Rotation Drive Motor: 4.0 Kw motor,Rotation Drive Control: 4.0 Kw AC inverter,Tilt Drive Motor: 4.0 Kw c/w brake
Package Includes:
- 6 month warranty
Lead Times
All used machines are serviced/refurbished to order, and lead times are dependant on current workload and machine type. The below can be used as a guide only, and is subject to change. If you have a deadline you need the equipment by, please contact us prior to ordering. We will always do what we can to try and work with your timescales where possible.
- “As Is” machines: 2-3 working days.
- “Serviced” machines: 7 working days.
- “Refurbished” machines: 2-3 weeks.
- “New” machines: subject to stock and supplier lead times where applicable.
Shipping
All shipping costs include packing.
UK*
- Parcel delivery: from £15 next day courier
- Pallet delivery: from £75
- Large item delivery: TBC by quotation
Northern Ireland
- Pallet delivery: £120
- Parcel and large item delivery: TBC on quotation
Ireland
- Pallet delivery: £220
- Parcel and large item delivery: TBC by quotation
Europe and Overseas
All welding equipment and machinery is sold and supplied Ex-Works, unless otherwise stated. We can however provide full freight forwarding facilities via road, sea or air freight. We work with our reliable shipping partners for one off items, up to the loading of 40ft containers. For a quotation, please contact us with your destination address/port, along with any other specific documentation requirements.
* Rates for mainland UK, subject to change. If in doubt, please send us your delivery postcode for confirmation
