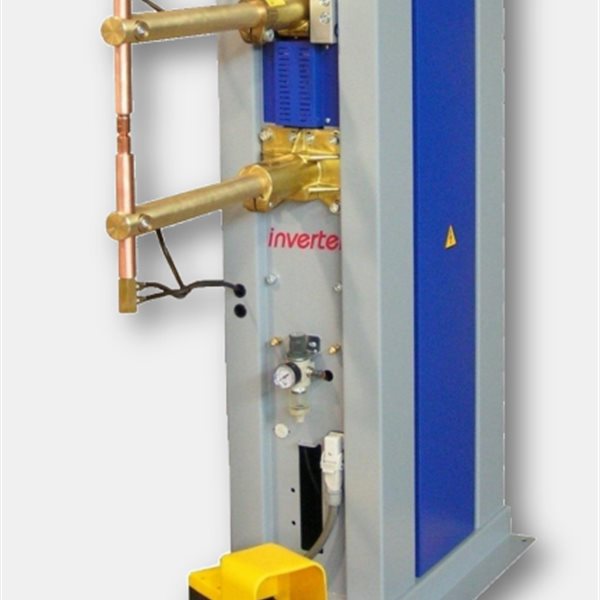

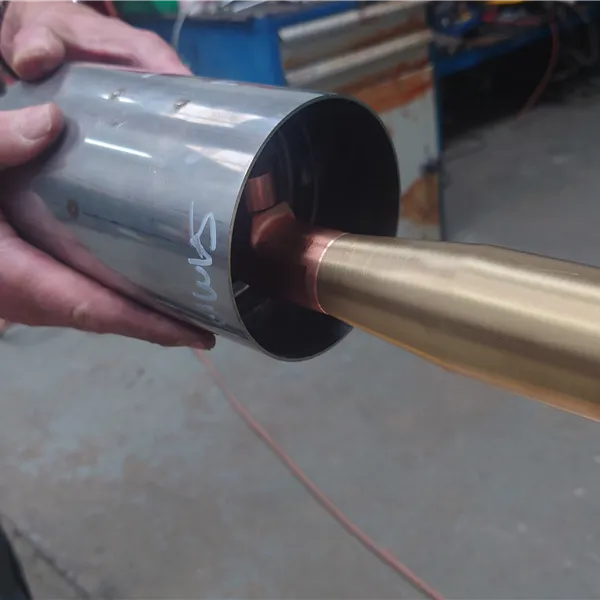

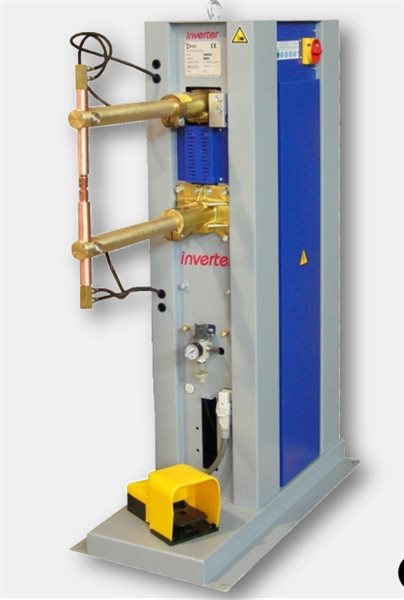

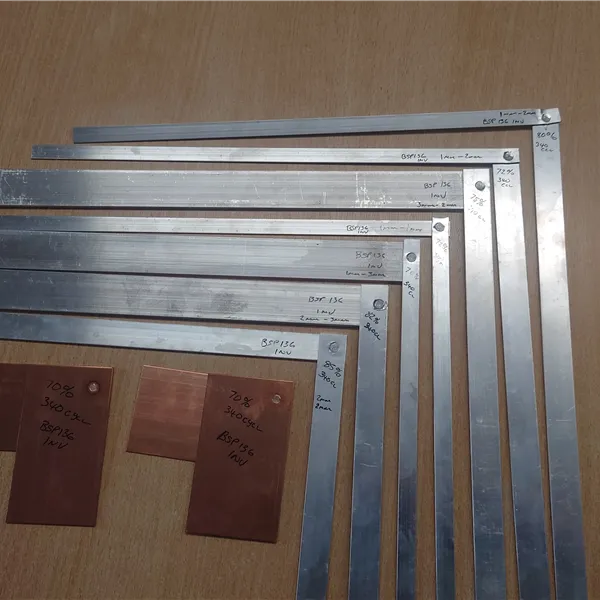

PEI BSP 35kVA Rocker Arm Spot Welder - Energy Saving 3 Phase Inverter
This equipment is available for delivery to United States
- BSP 136 Inverter rocker arm spot welder with PX1700PRO MFDC controls uses a lot less power then a standard AC spot welder, works from 32 amp socket, 3-phases
- ENERGY SAVING

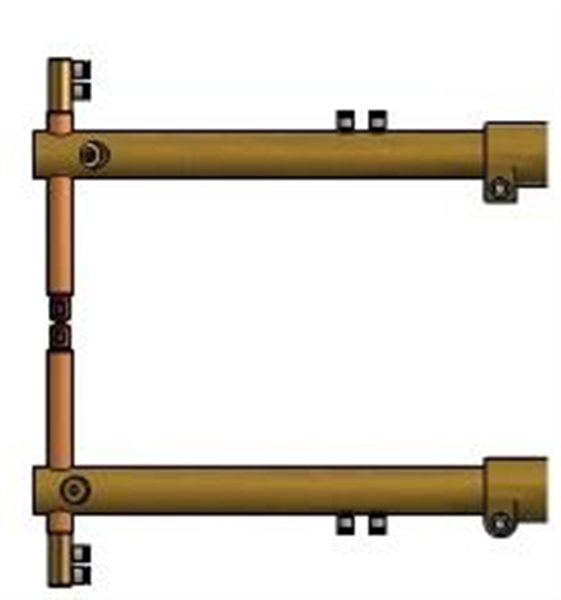

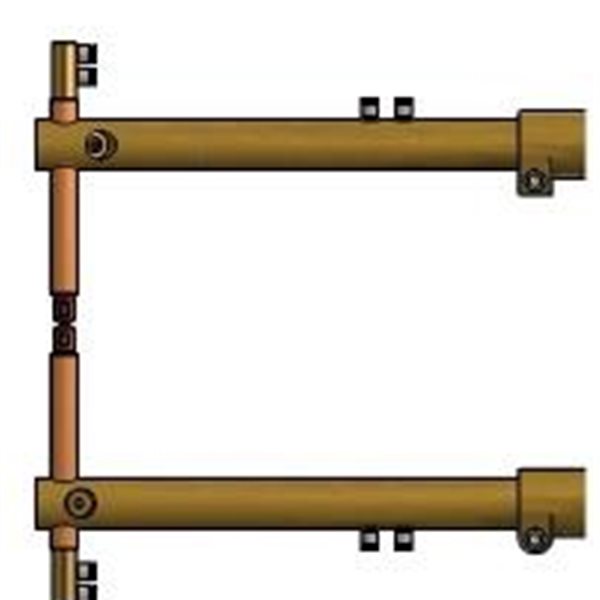

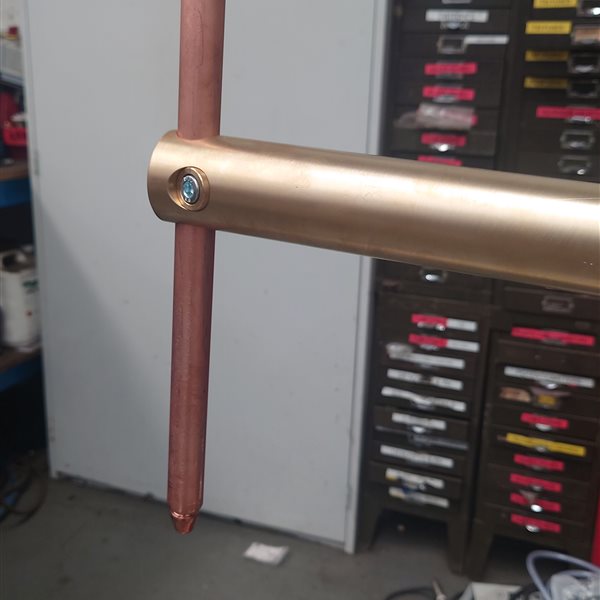

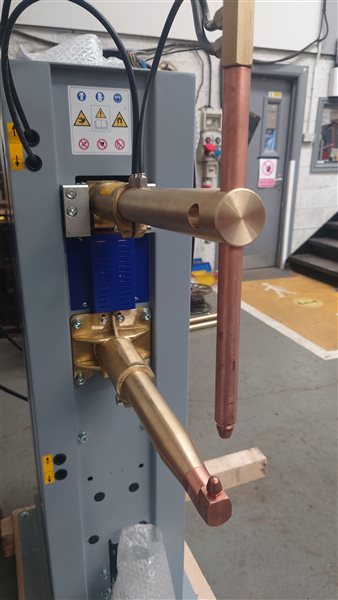

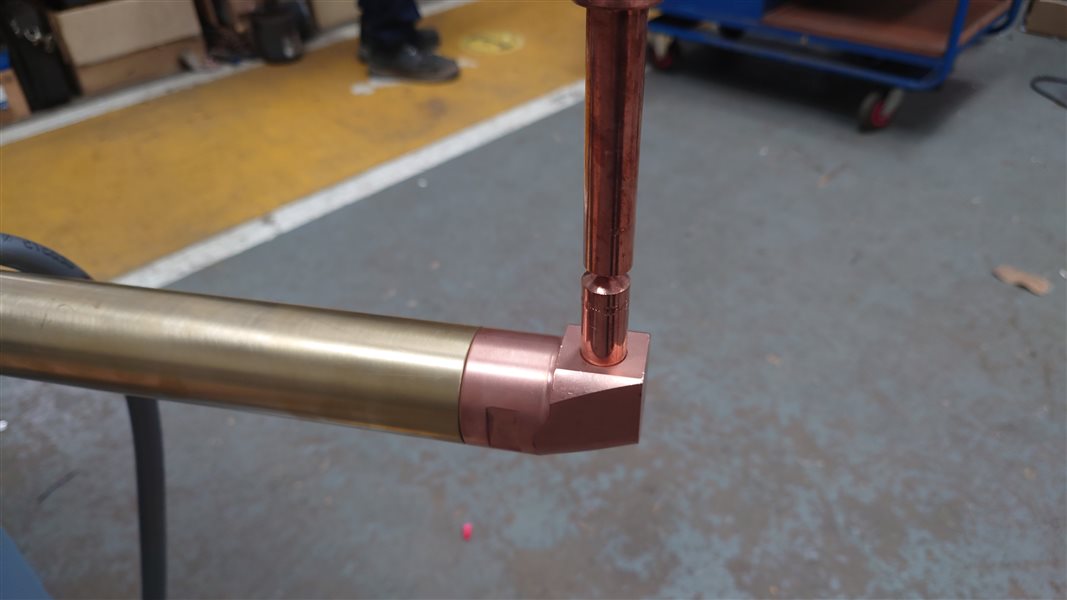

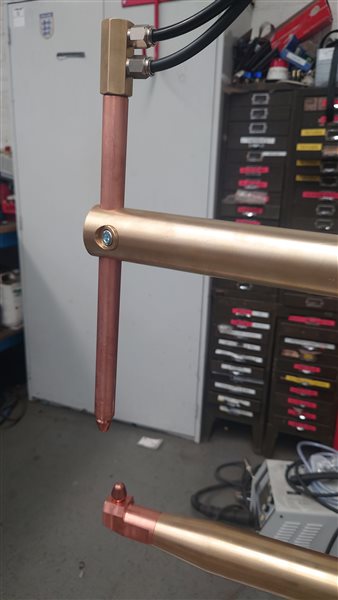

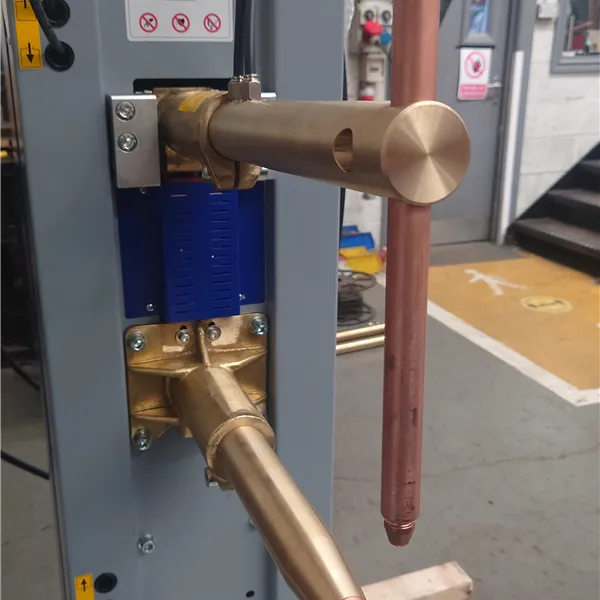

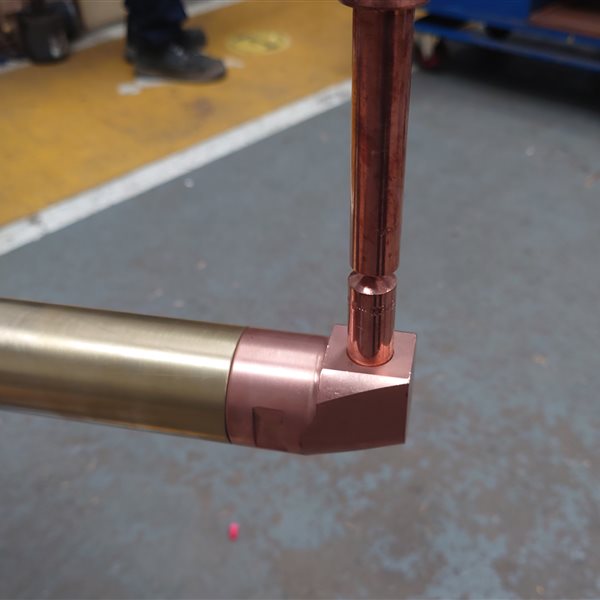

- Rugged steel frame, Water-cooled electrode holders and electrodes, Arms adjustable for depth.
- Welding control with graphic display for the control of medium frequency inverter generators
- Digital resistance welding control with three numeric displays. Control of nine time-parameters: Squeeze, pre-weld, slope-up, weld, impulses, down-slope, post weld, hold time, pause time (with auto repeat function)
- Welding time adjustable in milliseconds (three-phase MFDC welding machines). 100 welding programs storable
- Double cycle start input available for recalling two consecutive programs. Weld-No Weld input.
- Control of two solenoid valves with control circuit diagnostics. Two end sequence output signals.
- Weld quality control monitoring by weld current limits (tolerance) in self-teaching mode.
- Weld Counter- RMS weld current measurement
- USB port for backing up programs, firmware updates, welding reports performed in Excel format on a USB stick
- Date and time clock, with backup battery. Analog output for controlling the HP400 inverter
- Analog output for proportional solenoid valve control. Alarm output.
Package Includes:
- 12 month warranty
Lead Times
All used machines are serviced/refurbished to order, and lead times are dependant on current workload and machine type. The below can be used as a guide only, and is subject to change. If you have a deadline you need the equipment by, please contact us prior to ordering. We will always do what we can to try and work with your timescales where possible.
- “As Is” machines: 2-3 working days.
- “Serviced” machines: 7 working days.
- “Refurbished” machines: 2-3 weeks.
- “New” machines: subject to stock and supplier lead times where applicable.
