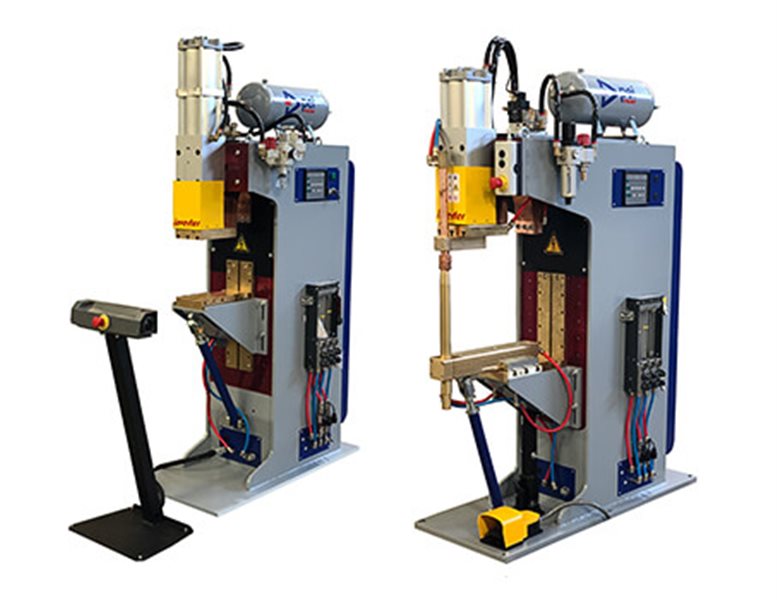

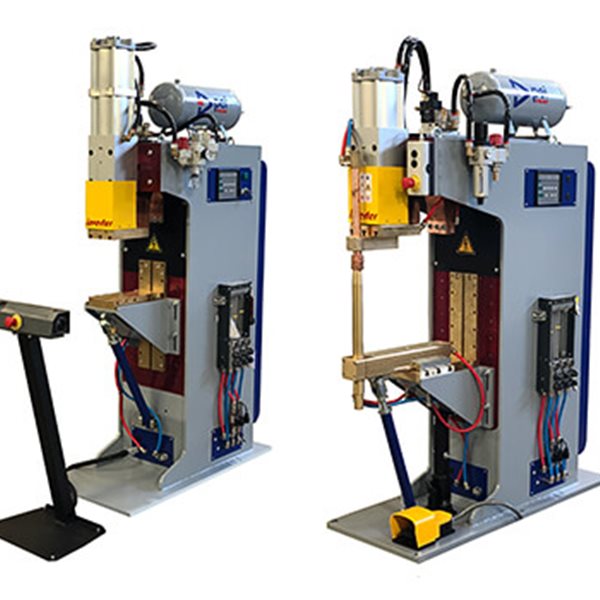

PEI PFK Spot and Projection Welding Machine single phase 80 to 150kva
- Single-phase (AC) or three-phase (MFDC) power supply Constant current regulation: AC welders only with CS-NET welding control; MFDC welders only with HP1000 Inverter
- Save energy when going towards the inverter
- Heavy duty frame construction guarantees minimal flexing even with high electrode forces
- Compact and modular design for both manual and automatic applications
- Can be fitted with twin heads
- Main transformer, platens and electrode holders fully water cooled
- Conventional AC machine as standard
- Fitted with PX1700 digital control with 9 programs (AC) or PY800 control on MFDC machines
- Foot pedal and concomitant hand push buttons on separate pedestal
- Spot welding arms available as optional extra
- 270mm or 450mm reach frame dimension to platen centre
- Lower platen adjustable for height
- Adjustable double stroke cylinders (on request); - Pneumatic circuit for low force

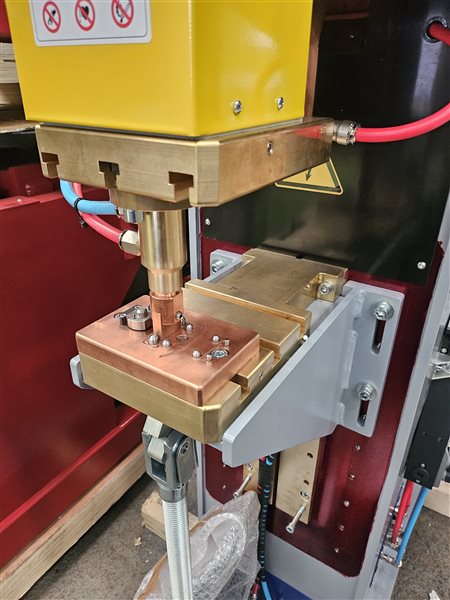

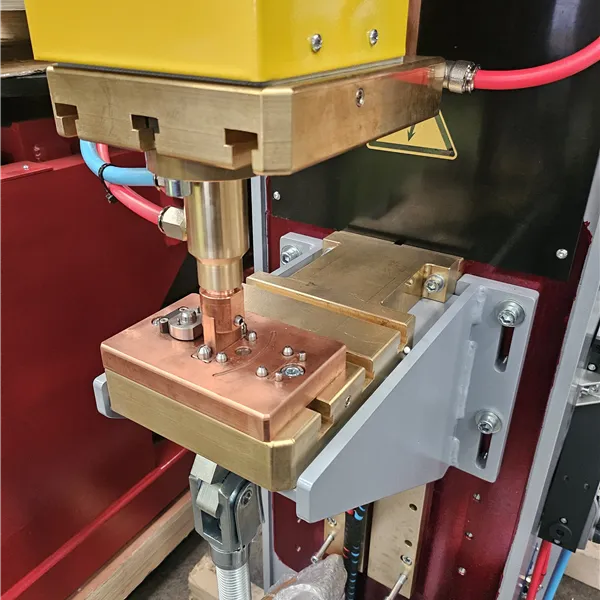

- Pneumatic projection welding machine with linear head
- 150kva Fuse rating for mains supply 160A delayed action (10 welds/minute)
Package Includes:
- 12 month warranty
Lead Times
All used machines are serviced/refurbished to order, and lead times are dependant on current workload and machine type. The below can be used as a guide only, and is subject to change. If you have a deadline you need the equipment by, please contact us prior to ordering. We will always do what we can to try and work with your timescales where possible.
- “As Is” machines: 2-3 working days.
- “Serviced” machines: 7 working days.
- “Refurbished” machines: 2-3 weeks.
- “New” machines: subject to stock and supplier lead times where applicable.
Shipping
All shipping costs include packing.
UK*
- Parcel delivery: from £15 next day courier
- Pallet delivery: from £75
- Large item delivery: TBC by quotation
Northern Ireland
- Pallet delivery: £120
- Parcel and large item delivery: TBC on quotation
Ireland
- Pallet delivery: £220
- Parcel and large item delivery: TBC by quotation
Europe and Overseas
All welding equipment and machinery is sold and supplied Ex-Works, unless otherwise stated. We can however provide full freight forwarding facilities via road, sea or air freight. We work with our reliable shipping partners for one off items, up to the loading of 40ft containers. For a quotation, please contact us with your destination address/port, along with any other specific documentation requirements.
* Rates for mainland UK, subject to change. If in doubt, please send us your delivery postcode for confirmation
