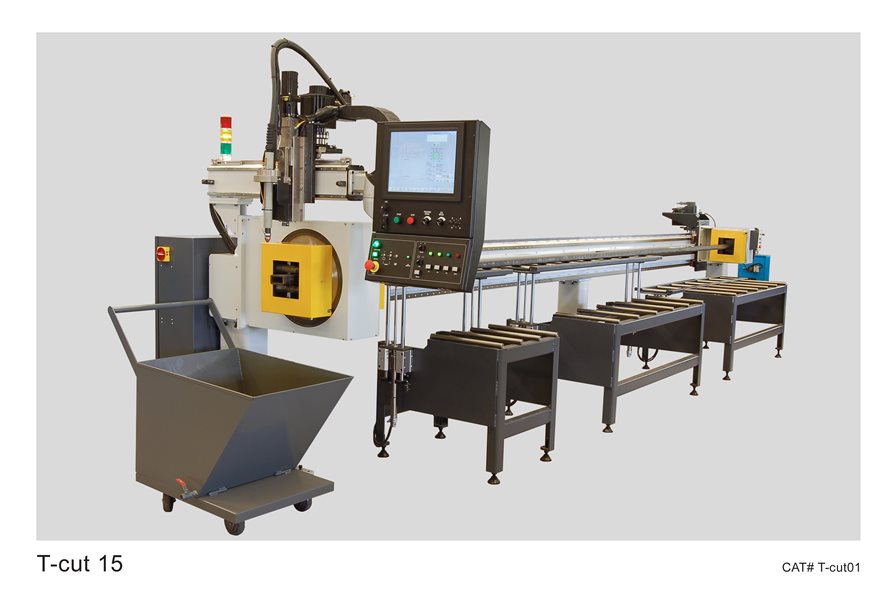

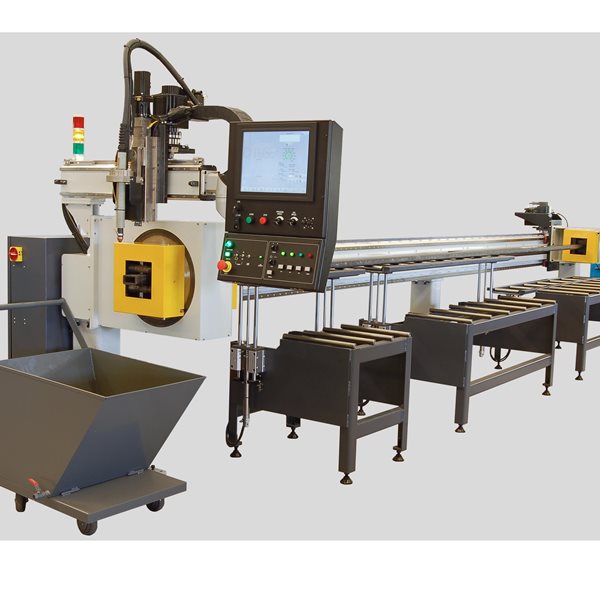

ProArc T-Cut CNC Plasma Tube Cutting Machine
- T-Cut plasma tube cutting system for trusses, frames, heavy duty and special purpose cutting machine with a choice of Hypertherm air or hydefinition plasma power source
- Manufacturing sectors include truck trailers, fitness equipment, automotive side impact bars, agricultural equipment, crane and lifting equipment, playgrounds and construction.
- Includes T-Cut control system has capacities up to 150mm diameter tubular and maximum lengths up to either 6,000mm or 8,500mm (on demand), the T-Cut plasma cutting system offers the following features:
- Fully CNC programmable adjustments - 4 axes interpolation. Model change without fixture-jig -less than 5 minutes.
- Technological database for tubular components based on thousands of on filed applications
- Fast programming: 2D/3D Rotary Tube Pro(RTP)
- Fully automatic bar handling from bundle including measuring, feeding, cutting and unloading. Minimum bar waste
- Chamber device to suit work piece diameter
- Rotation device and Longitudinal axis feed system
- Pneumatic support device to aid loading
- Self-centering chucking: jaws do not need to be changed, and rollers which guide tubes through the tube cutting machine manually adjusting depends diameter.
- Complete with Nesting software (MTC or equivalent)
- Please specify pipe length and pipe diameters for a confirmed quotation
Package Includes:
- 12 month warranty
Lead Times
All used machines are serviced/refurbished to order, and lead times are dependant on current workload and machine type. The below can be used as a guide only, and is subject to change. If you have a deadline you need the equipment by, please contact us prior to ordering. We will always do what we can to try and work with your timescales where possible.
- “As Is” machines: 2-3 working days.
- “Serviced” machines: 7 working days.
- “Refurbished” machines: 2-3 weeks.
- “New” machines: subject to stock and supplier lead times where applicable.
