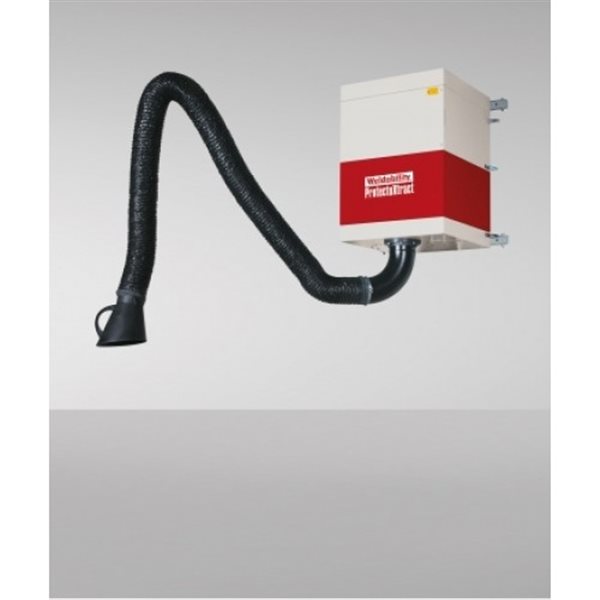

ProtectoXtract Wall Mounted Filter Fume Extraction System
- ProtectoXtract wall filter is an FDA approved wall mounted welding fume extraction system for filtration of particulate fumes, dusts and some gases
- The ProtectoXtract wall unit uses a 2 stage filtration system, with replaceable filters.
- Quiet in operation - <70dB(A))
- Provides air movement of 2500 m3/h @ 2500pa
- Filter efficiency: 99.99% (415V), Motor power: 1.1kw
- Dimensions: 665mm x 681mm x 940mm, weight: 130kg
- IP rating/ISO class: IP 54/F
- Compliant with DIN EN ISO 1501201, so is suitable for category W3 stainless welding fumes (>30% Ni + Cr)

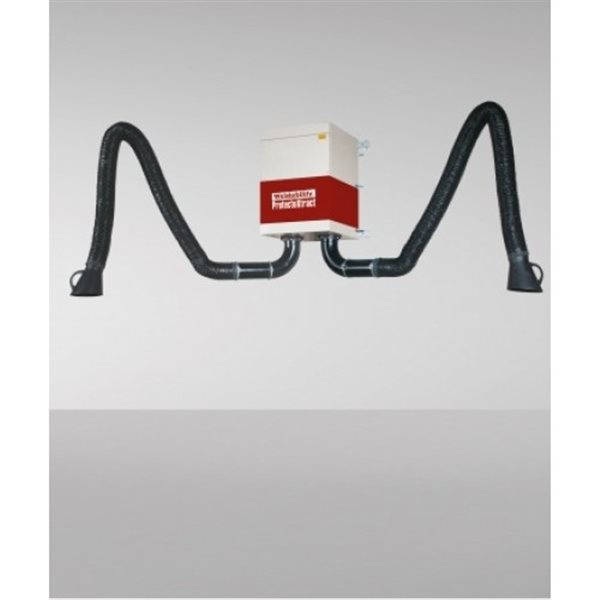

- Supplied with a 2m, 3, or 4m suction arm, hose with internal joints, filter. Also available as twin arm unit.
- When used with processes that produce spatter the optional aluminium pre-filter must be used.
