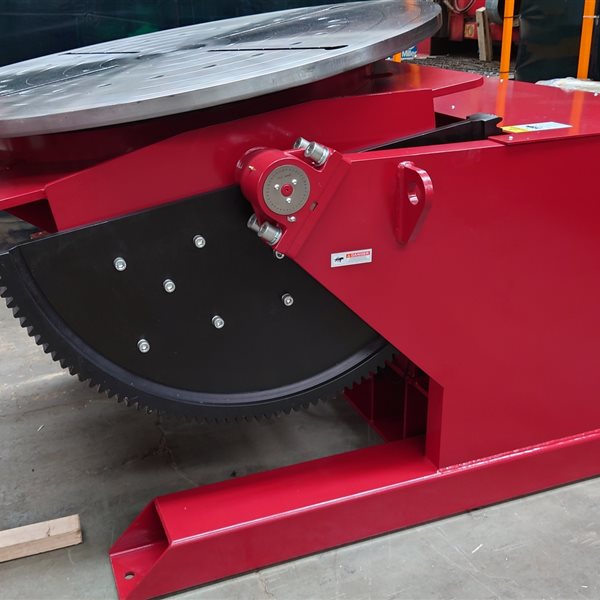

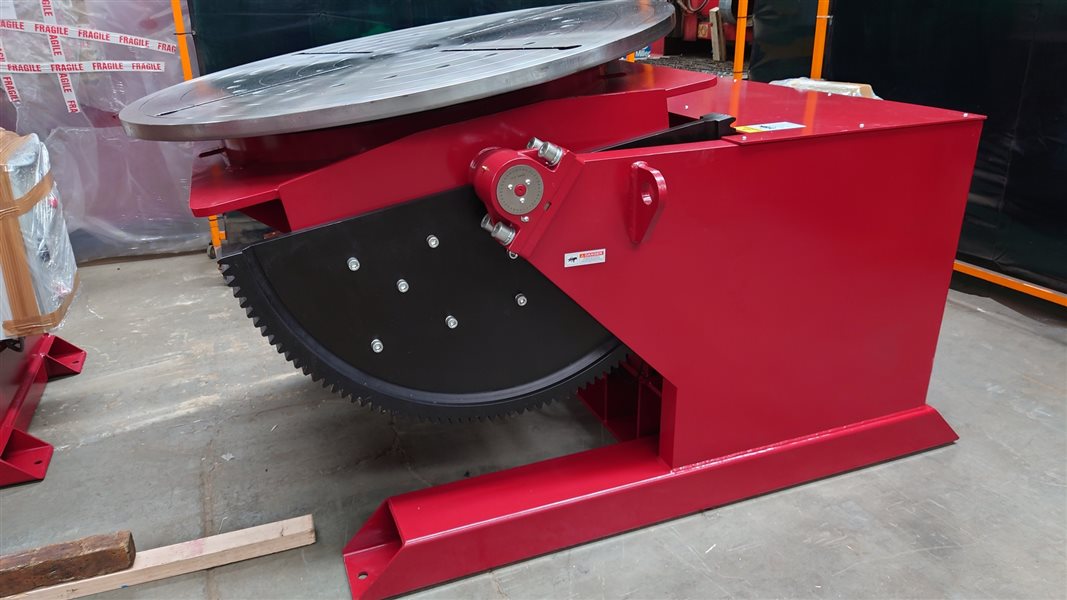

5000kg Welding Positioner Fixed Height with Tilting, Westworld
This equipment is available for delivery to United States

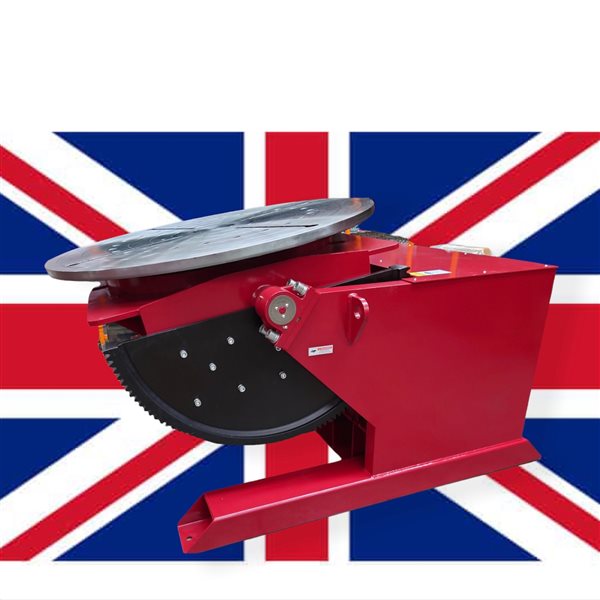

- New conventional Welding Positioner 5 ton British design British Quality Assured
- Load capacity : 5000kgs @ 300mm c.o.g. & 200mm eccentricity
- Table diameter : 1500mm
- Degree of table tilting : 135o
- Degree of table rotation : 360o
- Table rotation speed : 0.1 – 1.0 RPM
- Table tilting speed : 100 seconds through 135
- Machine Overall Dimensions : 2200mm x 1780mm x 1190mm (LxWxH)
- Machine Weight : 3000kgs
- The positioner is also supplied with a low voltage remote pendant control containing forward/stop/reverse, tilt-up/tilt-down pushbuttons and a variable speed potentiometer connected to the control panel.

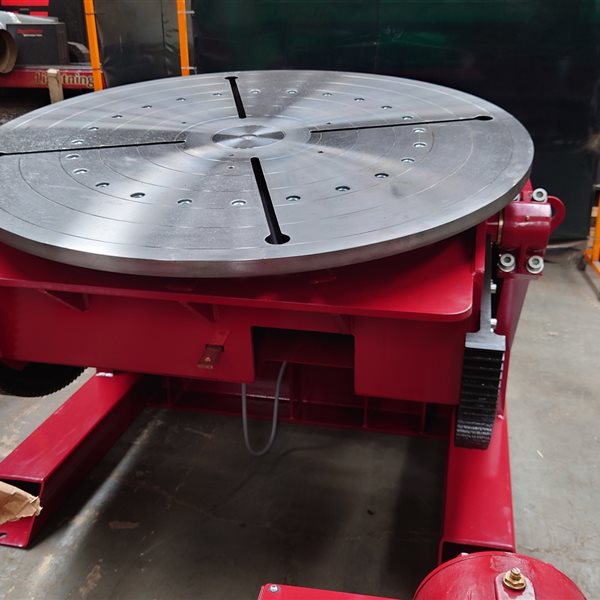

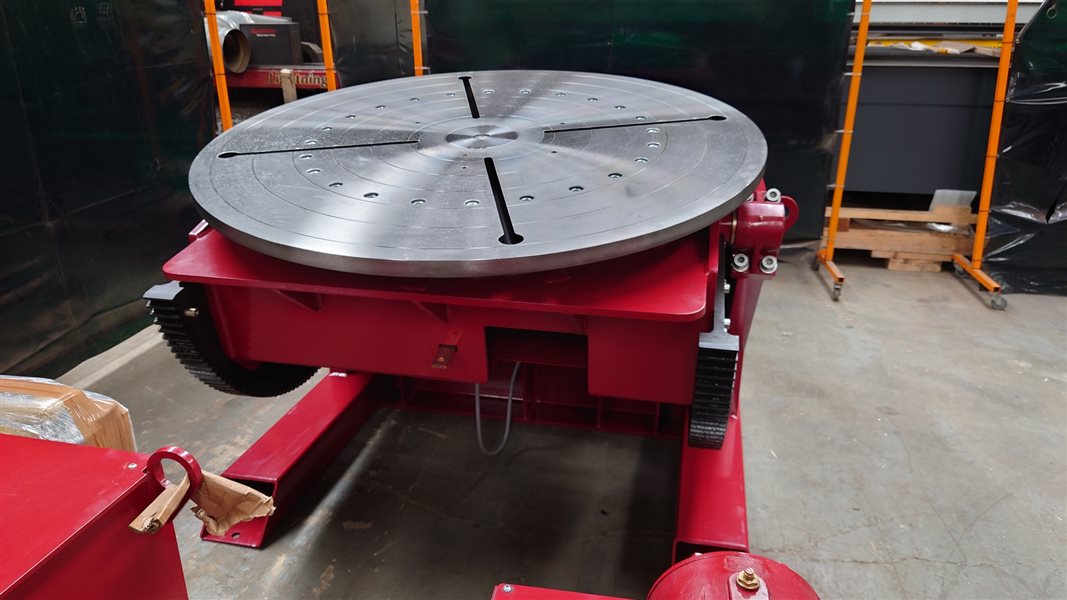

- Table machined with concentric circular markings and 4 off 22mm (M20) slots.
- Table equipped with efficient built-in earthing, 800 amps, and mounted on pre-loaded crossroll bearing.
- Table rotation fitted with AC motor and controlled by an Inverter unit suitable for 380 to 440V, 3 Phase supply
Package Includes:
- 12 month warranty
Lead Times
All used machines are serviced/refurbished to order, and lead times are dependant on current workload and machine type. The below can be used as a guide only, and is subject to change. If you have a deadline you need the equipment by, please contact us prior to ordering. We will always do what we can to try and work with your timescales where possible.
- “As Is” machines: 2-3 working days.
- “Serviced” machines: 7 working days.
- “Refurbished” machines: 2-3 weeks.
- “New” machines: subject to stock and supplier lead times where applicable.
