1.5kw Compact Fiber Laser Welder & Wire Feed 220v Double Wobble Head

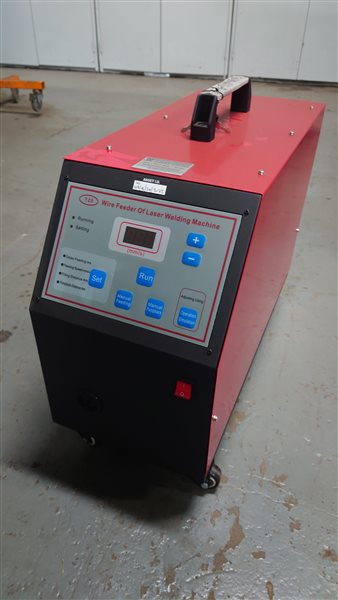

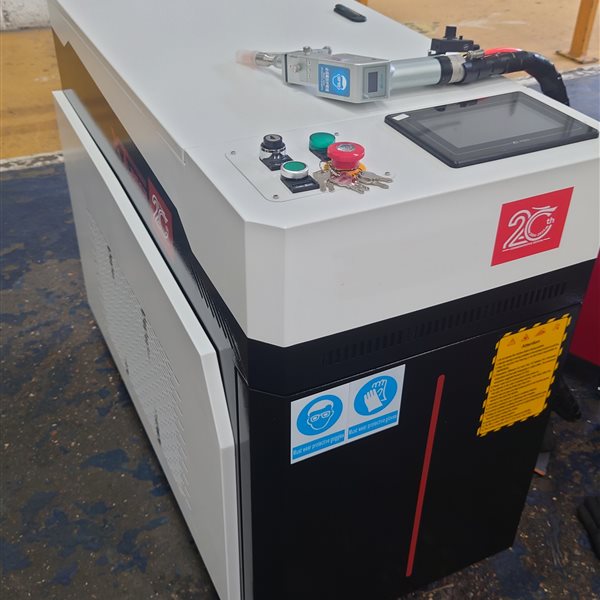

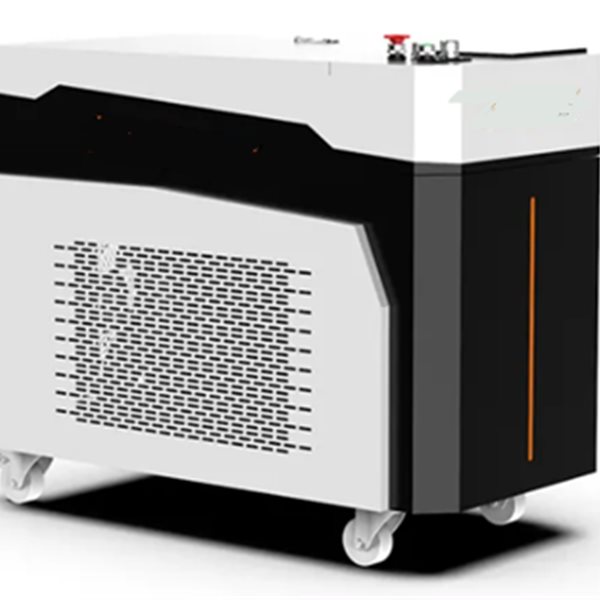

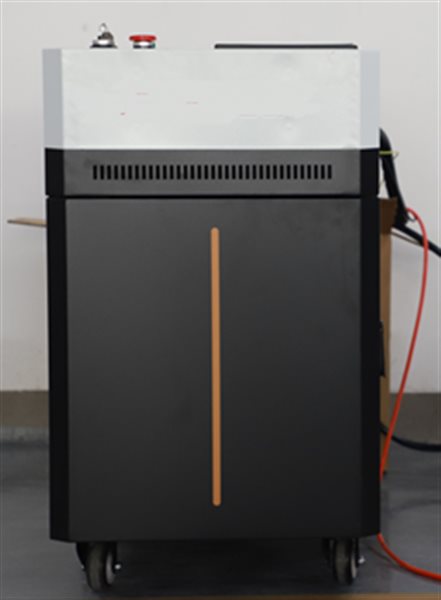

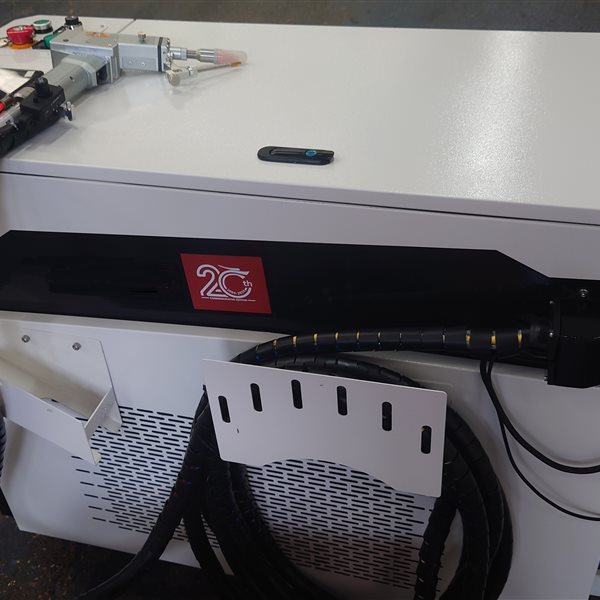

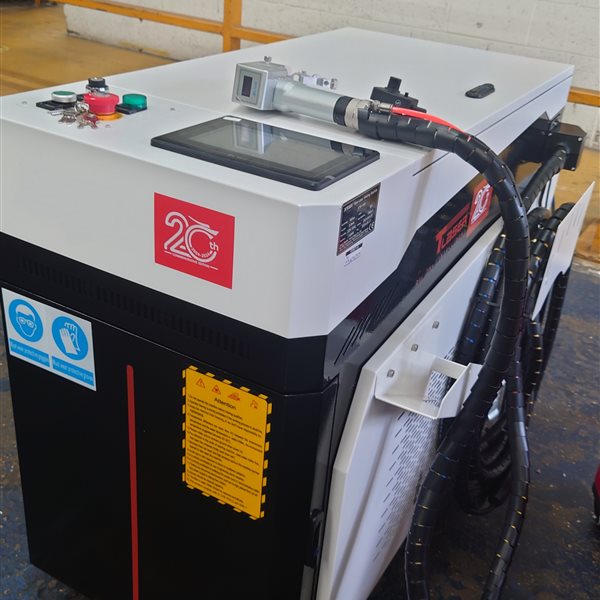

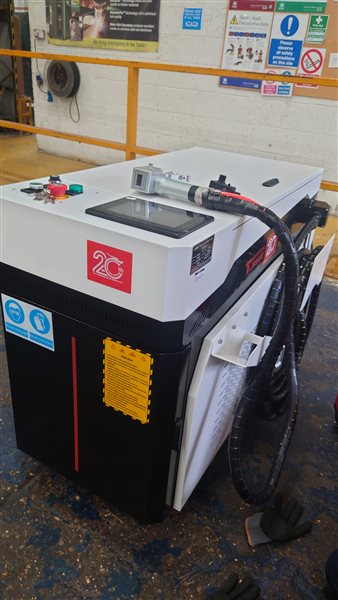

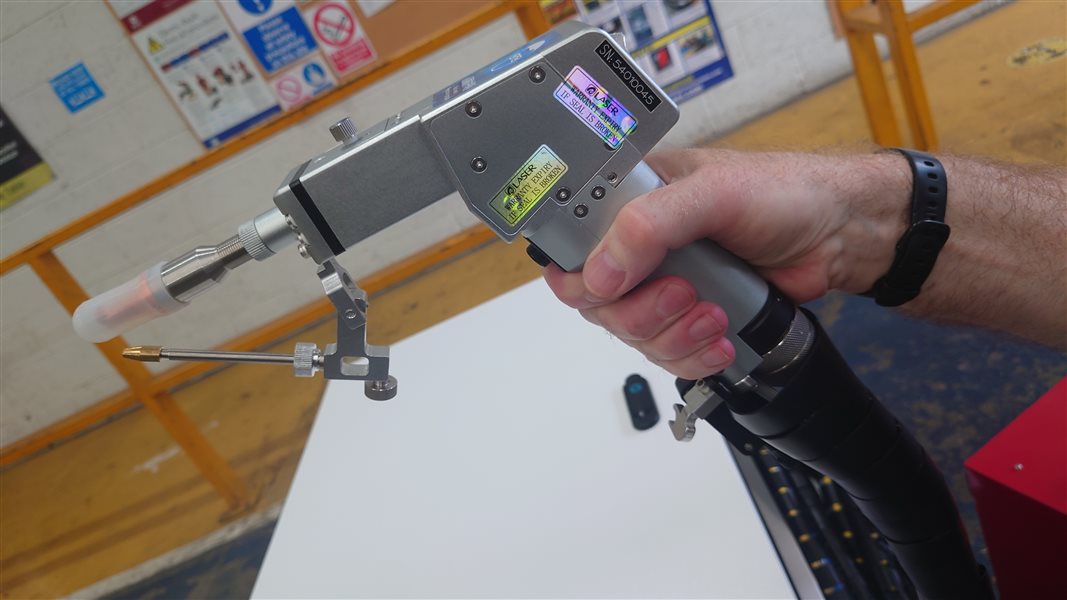

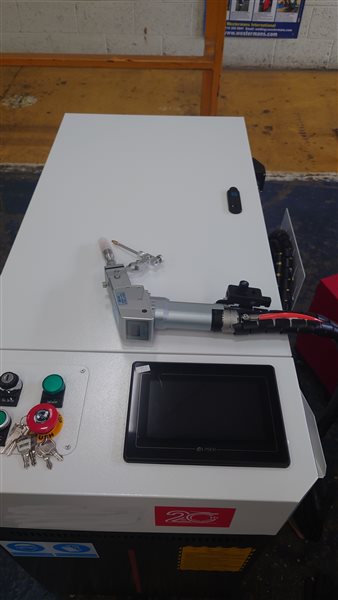

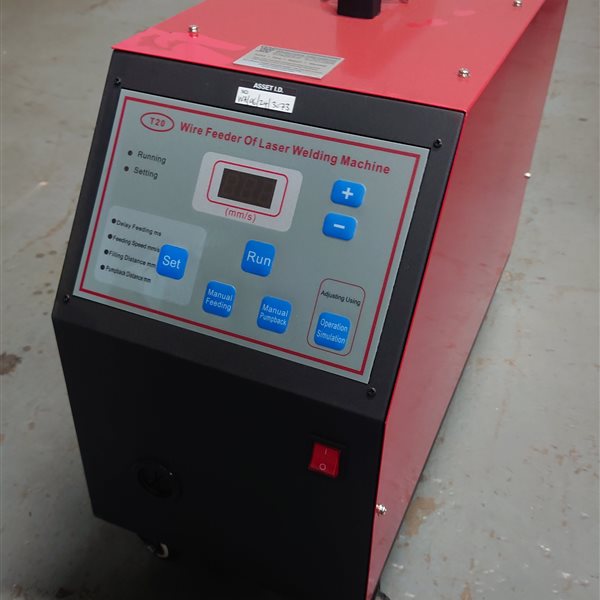

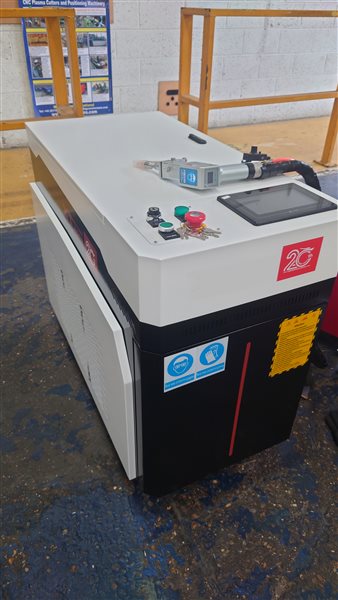

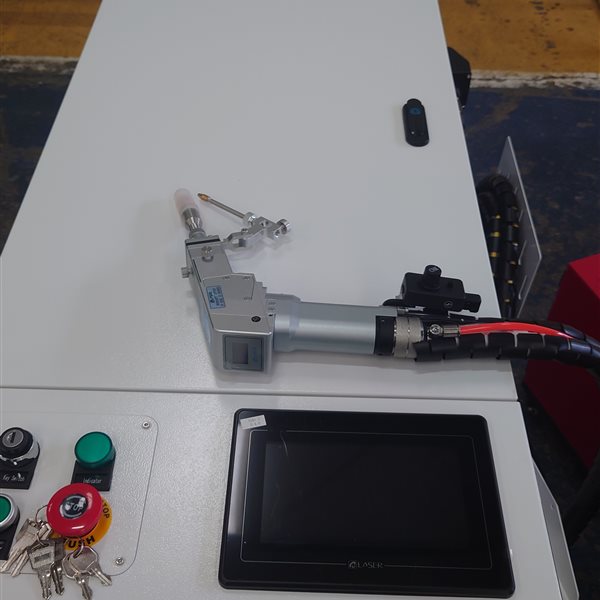

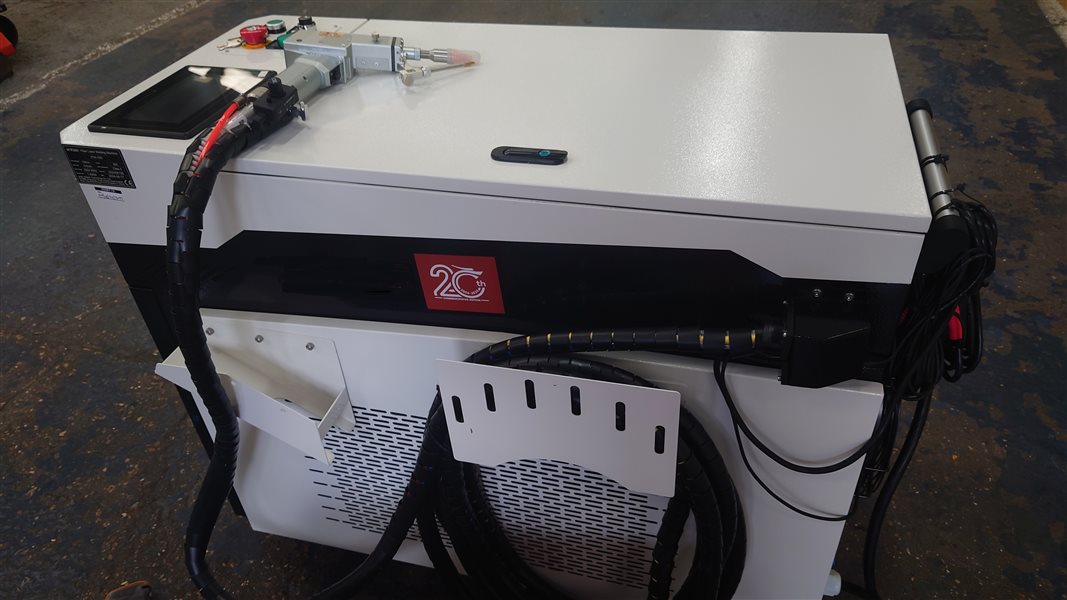

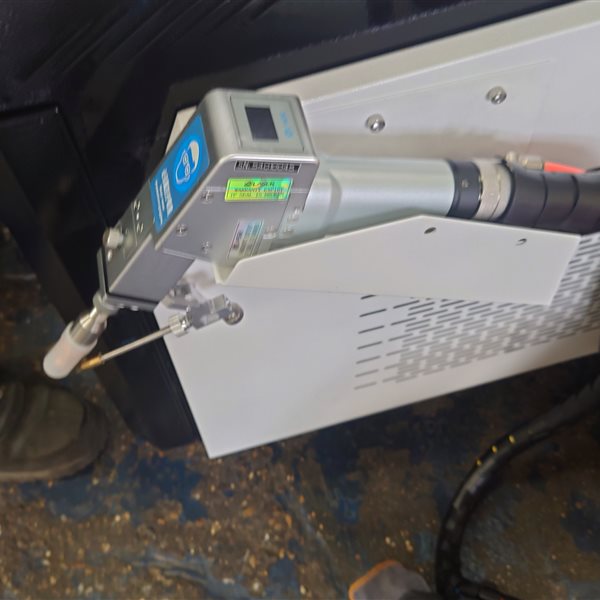

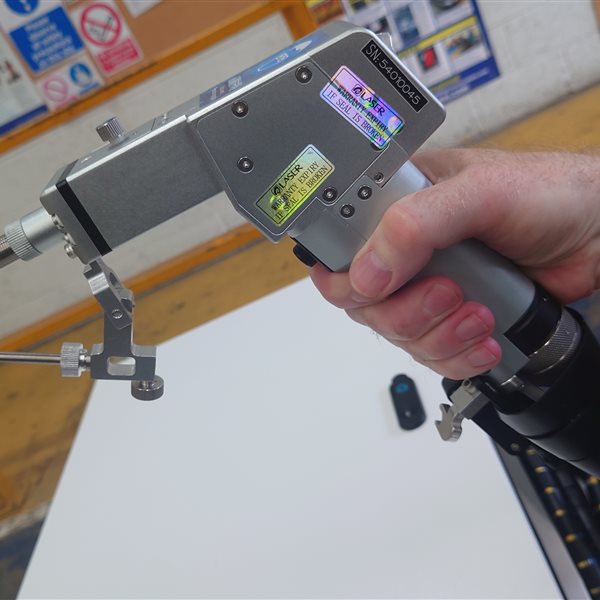

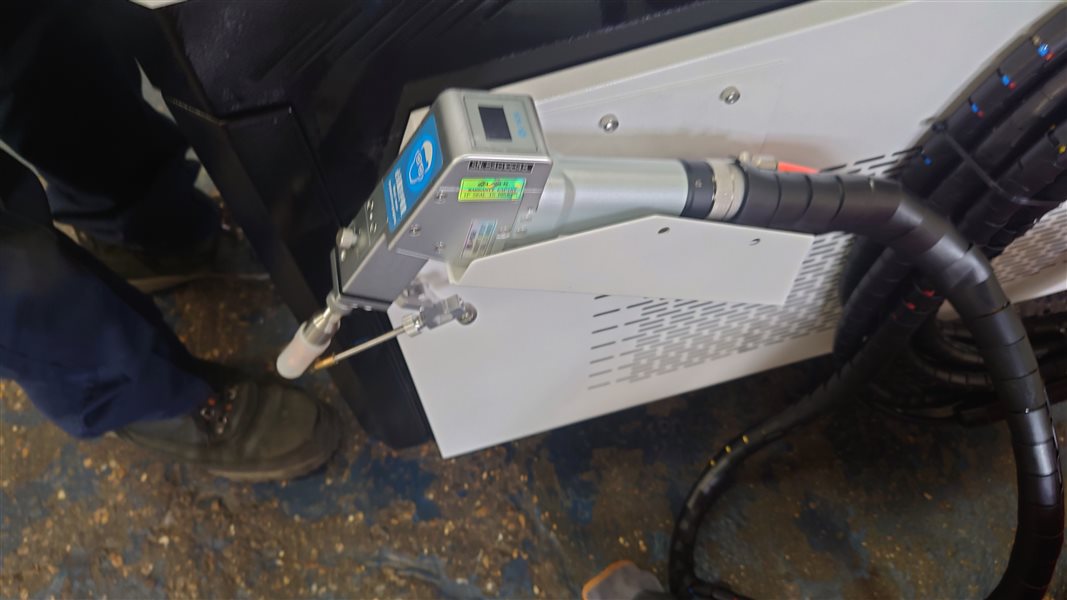

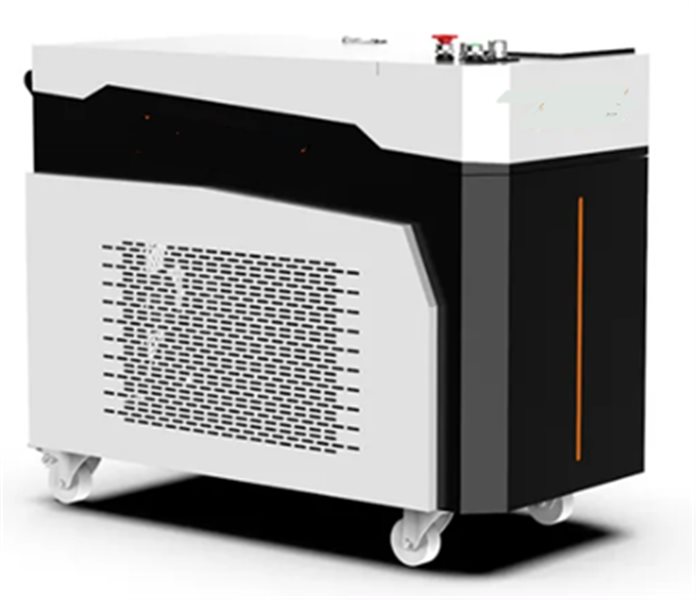

- 1.5kw Fiber laser welder with V20 double wobble weld head and wire feed unit. A new compact design makes the machine easy to move around and takes up less space
- 220V, single phase

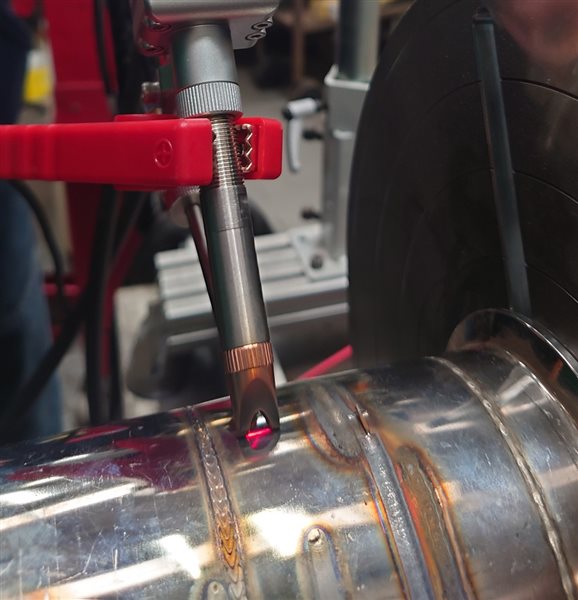

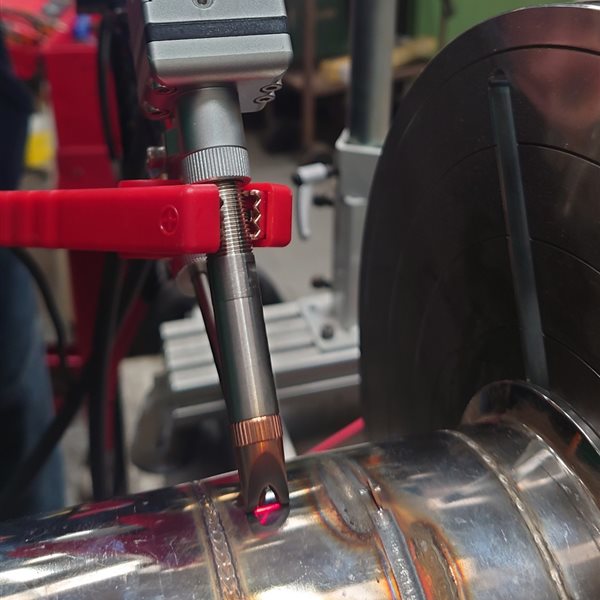

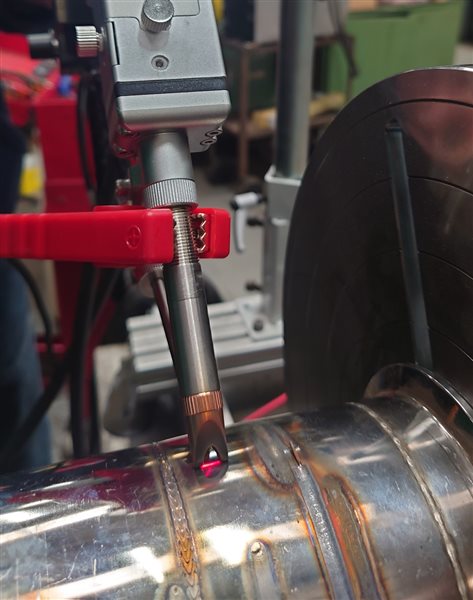

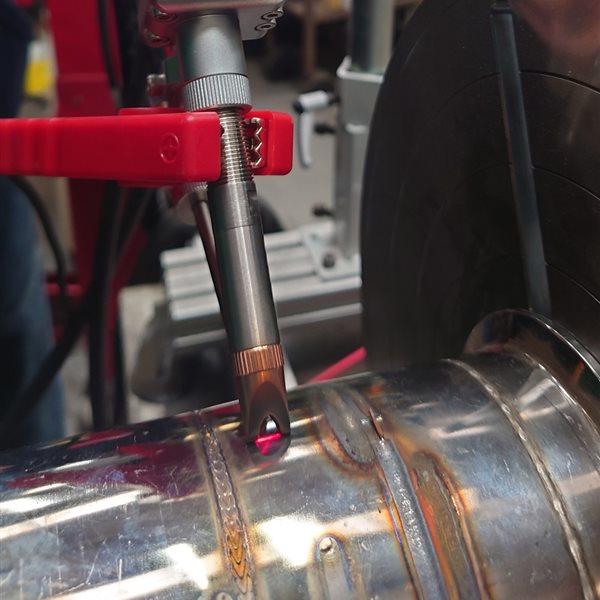

- Add Positioner, torch holder and accessories for an automated laser welding package. See example image
- Centre wavelength - 1080nm. 8m fiber cable length.
- Total power consumption - 7kw (1.5kw laser source)
- Cooling method - water cooling
- Welding parameter: Stainless steel - 5mm, Mild steel - 6mm
- Comes with a selection of consumables for both welding, cutting and also a starter pack of spares:
- 20 x Protective lens, 15 x Nozzles/Auto feeder nozzles, 1 x Wire feed bracket, 1 x Locking ring, 1 x Nozzles fixed device, 2 x Black wire feed tube (1mm/1.2mm) and 2 x Wire feed rollers.
- More details can be found on the PDF spec sheets.
- Main supply 220±20% V AC 50/60Hz (1.5kw)
- Thickness chart on PDF shows welding penetration maximum thickness is one side welding thickness. Welding maximum thickness is double side welding thickness.
- Dimensions L 1086mm x W 624mm x H 829mm

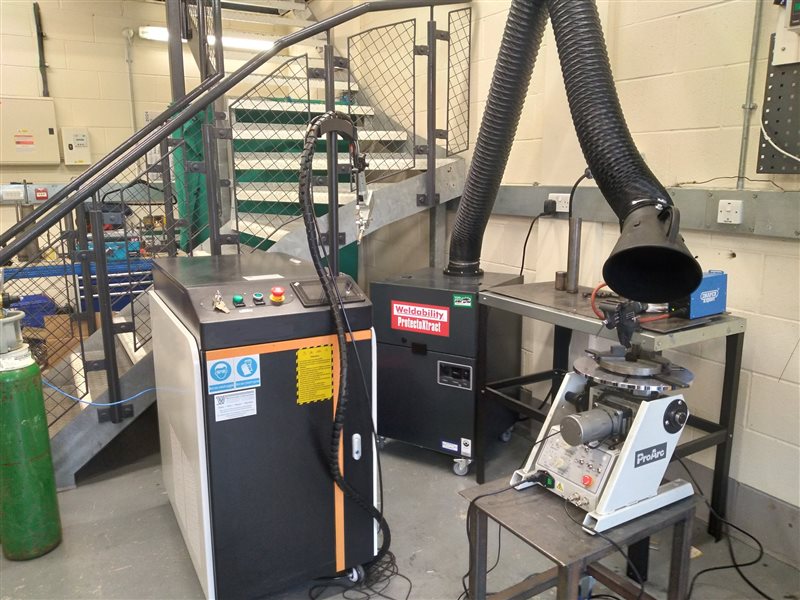

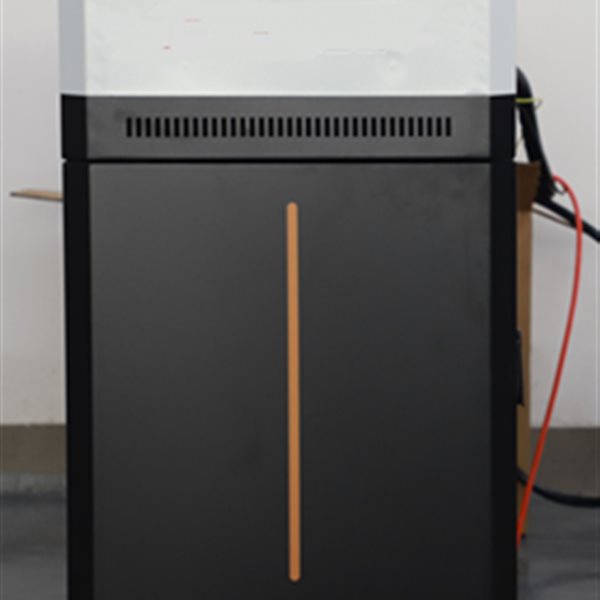

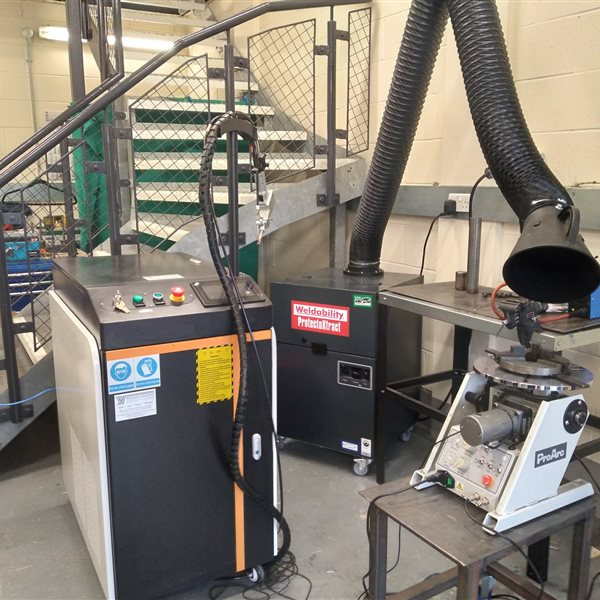

- 1st photo shown is not the compact version but an example of what we can supply
- Welding Screens can be supplied if required not shown on photos available by request
Package Includes:
- 12 month warranty
Lead Times
All used machines are serviced/refurbished to order, and lead times are dependant on current workload and machine type. The below can be used as a guide only, and is subject to change. If you have a deadline you need the equipment by, please contact us prior to ordering. We will always do what we can to try and work with your timescales where possible.
- “As Is” machines: 2-3 working days.
- “Serviced” machines: 7 working days.
- “Refurbished” machines: 2-3 weeks.
- “New” machines: subject to stock and supplier lead times where applicable.
